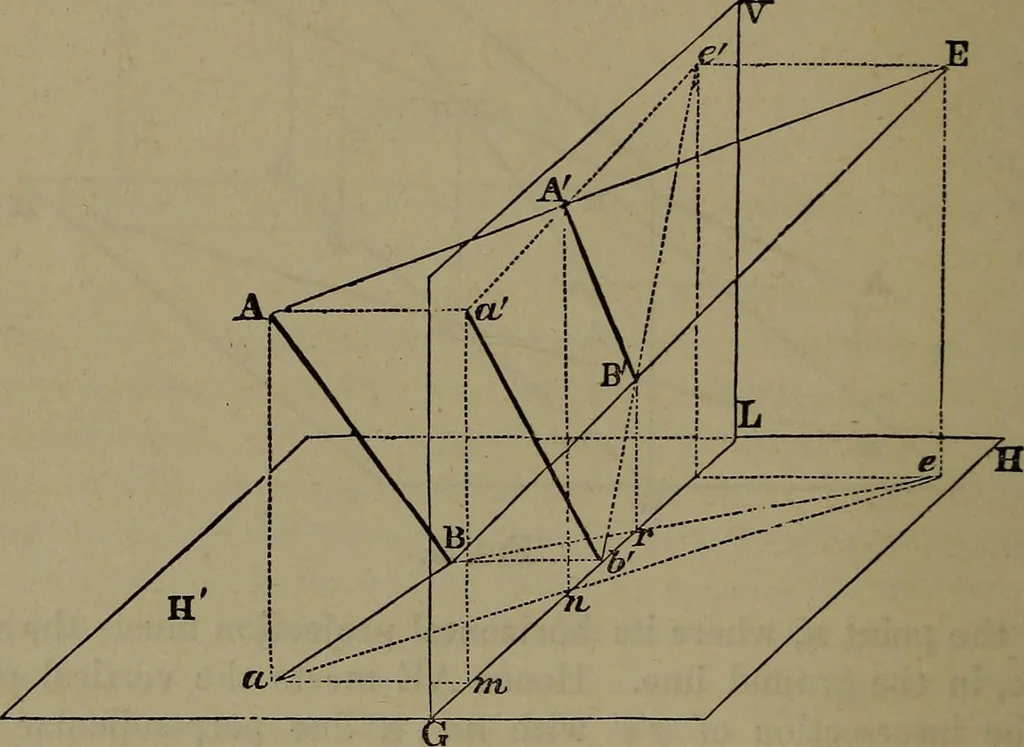

ized, as well as clearly understood, untilthey become thoroughly familiar. b. It is now evident that if E is the position of the eye, andGLY the perspective plane, AE is a visual ray, and n is the per-spective of the point A, as seen by the eye at E. 59. In further illustration of the manner of… … Fig. 10. GHH is the horizontal plane. GY, the vertical plane, is, asusual^ taken also for the perspective plane. Let AB be any-oblique line, behind the perspective plane, and meeting the horizon-tal plane at B, and whose perspective is to be found. Let E, infront of the perspective plane, be the…
