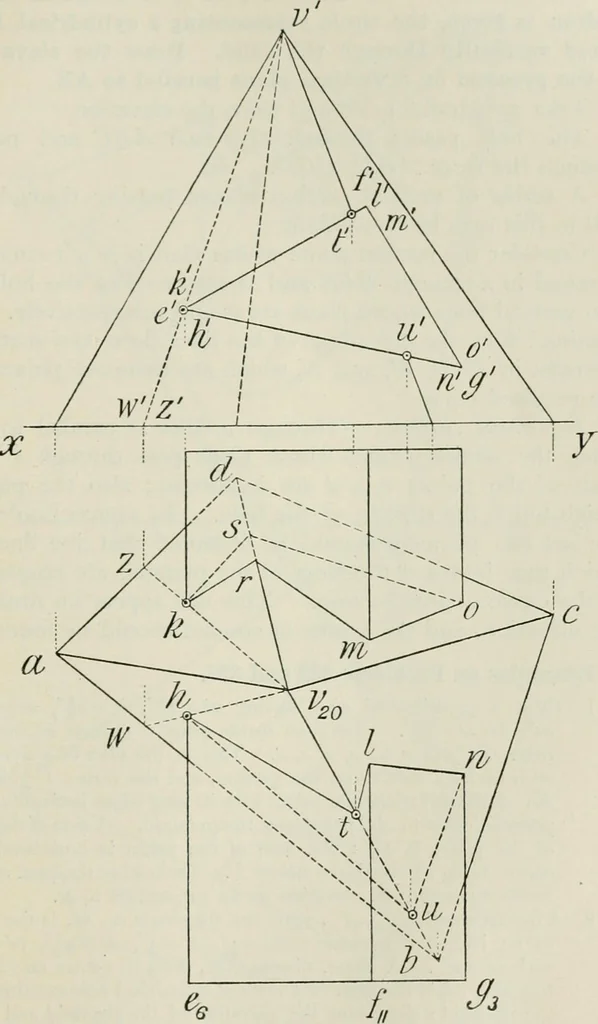

plans t and it being obtained atonce by projection. In like manner the edge VD meetsthe same two faces in R and S. When joining the points thus found, each face of theprism may be taken in turn and its lines of intersectionwith the faces of the pyramid noted. Thus, taking the face EG, it will be… … 400 PRACTICAL SOLID GEOMETRY chap. 323. Problem.—The indexed plan of an irregular tetra-hedron is given, the circle representing a cylindrical holebored vertically through the solid. Draw the elevationof the pyramid on a vertical plane parallel to AB. Take xy parallel to ab and draw the elevation.…
