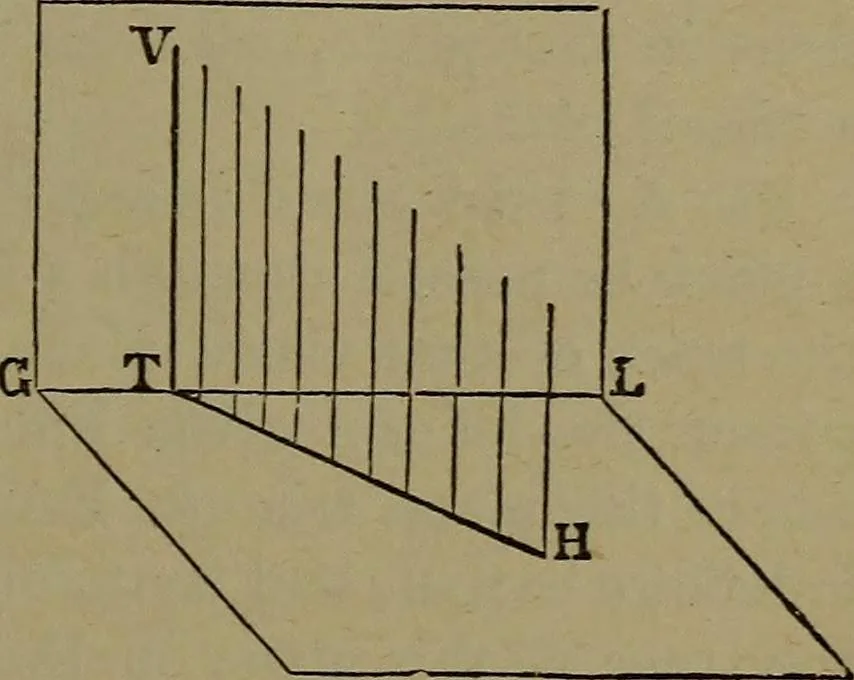

t Avhere either trace meets the ground line iawhere the plane cuts the ground line; hence hoth traces of a planemust meet the ground line at thesame pointy if they meet it at all.The traces of a plane will meetthe ground line unless the planeis parallel to that line. 79. If, as ill Fig. 24, a plane… … Fig. 24. 46 LINEAR PERSPECTIVE. plane of projection, its horizontal trace, HT, will be perpendicularto the ground line, G L. If a plane is perpendicular to both of the planes of projection,both of its traces will be perpendicular to the ground line, as wehave seen in (72-74).
