Thermodynamics of the steam-engine and other heat-engines (1907)
Peabody, Cecil H. (Cecil Hobart), 1855-1934 · New York, J. Wiley & sons; [etc., etc.] · leaf 499

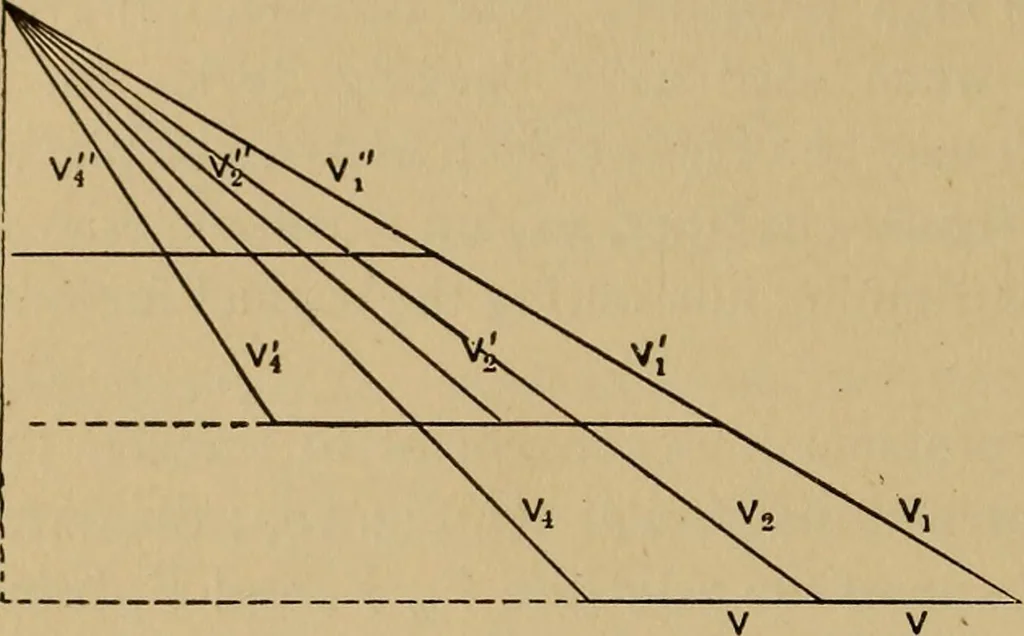

o the velocities, using relative velocitiesfor the vanes and absolute velocities for the guides. There appears to be no reason why the guides should berelieved from axial thrust provided they can be properly sup-ported. 490 STEAM-TURBINES Except that the passages in the guides might become toolong… … Fig. 108. the usual manner,being equal to V^;velocity F4 is laid offalong the same line asFj and is lettered F/and serves as the initialvelocity for a new con-struction as indicated. F/ is in like manner laid off for F/,and thus the diagram is completed. The velocity of the vanesof course remains…
Thermodynamics · Steam-engines · Heat-engines
