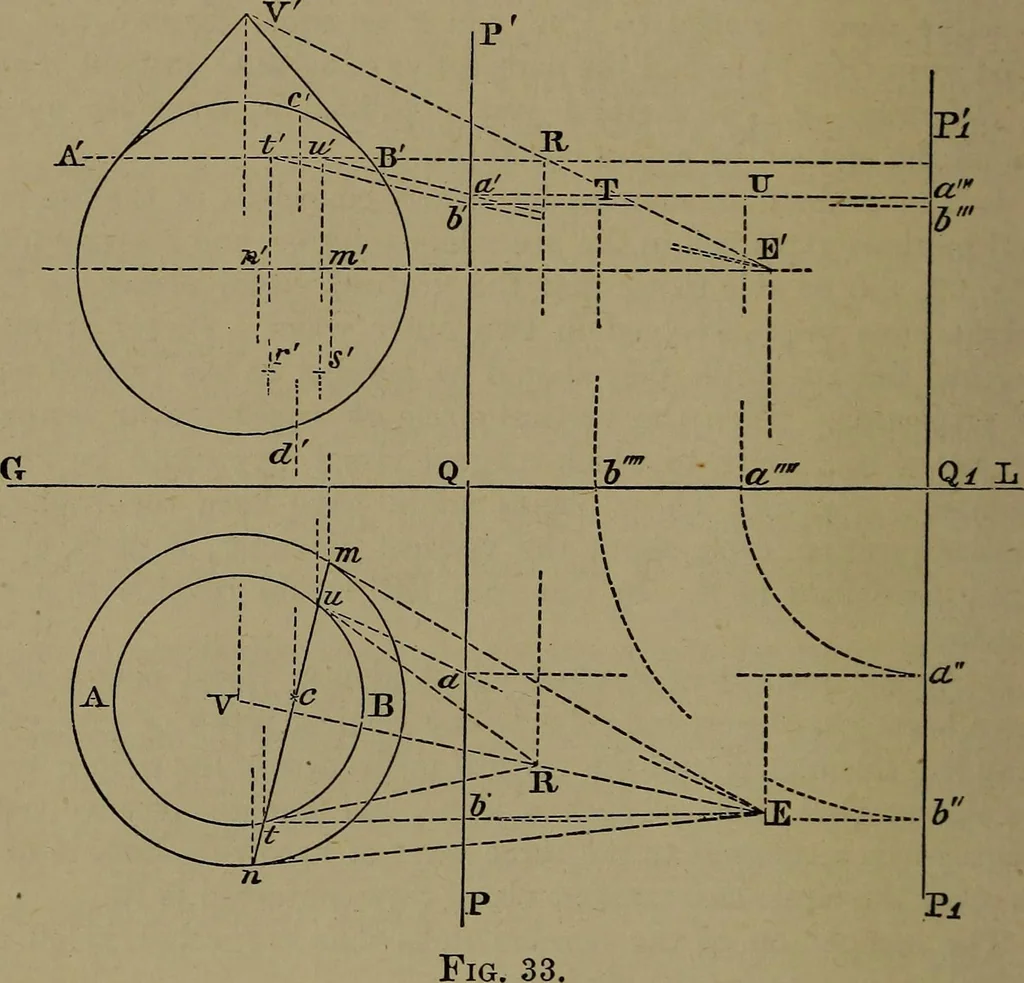

ofcontact with the sphere. 6°, and lastly : That the point where thedement of tangency oi 2^ plane and cone intersects the circle of tan-gency of the same cone vnth a sphere., will be the point of contactof that plane with the sphere. 62 IJNEAR PERSPECTIVE. If now the given point in space (3^) be… … Now in Fig. 33, let Ym-ABd be the given sphere, PQP theperspective plane, and EE the point of sight. Assume the circleAW—Au^t as the circle of contact of an auxiliary tangent cone(5<^). The tangents VA and VB complete the vertical projectionof this cone. EV-EV, the visual ray through YV, the…
