The elements of the mechanics of materials and of power transmission (1911)
King, William Richard, 1852- · New York, J. Wiley & sons; [etc., etc.] · leaf 143

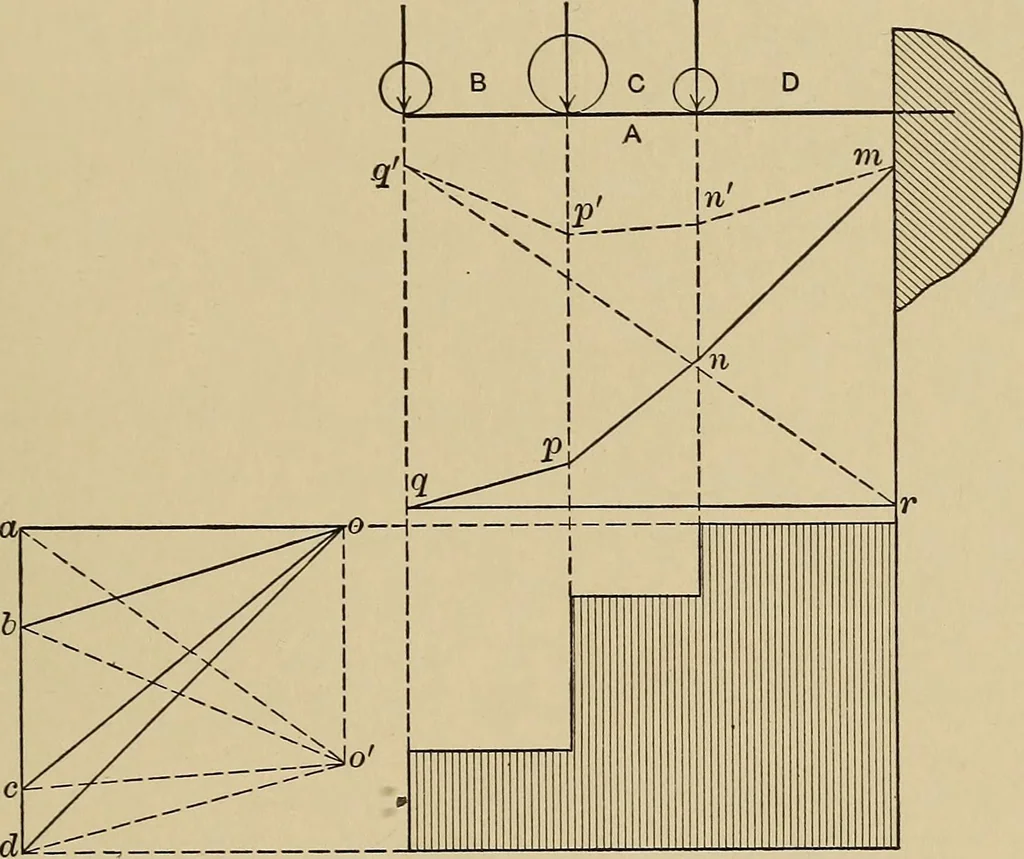

cted scale, to the loads AB, BC, and CD respectively. Selectsome pole 0, and draw the vectors oa, oh, oc, and od. From somepoint r in the support line draw a parallel to oa, producing ituntil it intersects the line of action oi AB Sit q. From q draw aparallel to ob and produce it until it… … Fig. 87. the bending-moment diagram of the cantilever, and the ordi-nate under any section of the beam is the measure of the bendingmoment at that section. The maximum bending moment is,of course, at the wall. The shear diagram is drawn by projection from the load lineand presents no difficulties.…
Mechanics, Applied · Power transmission
