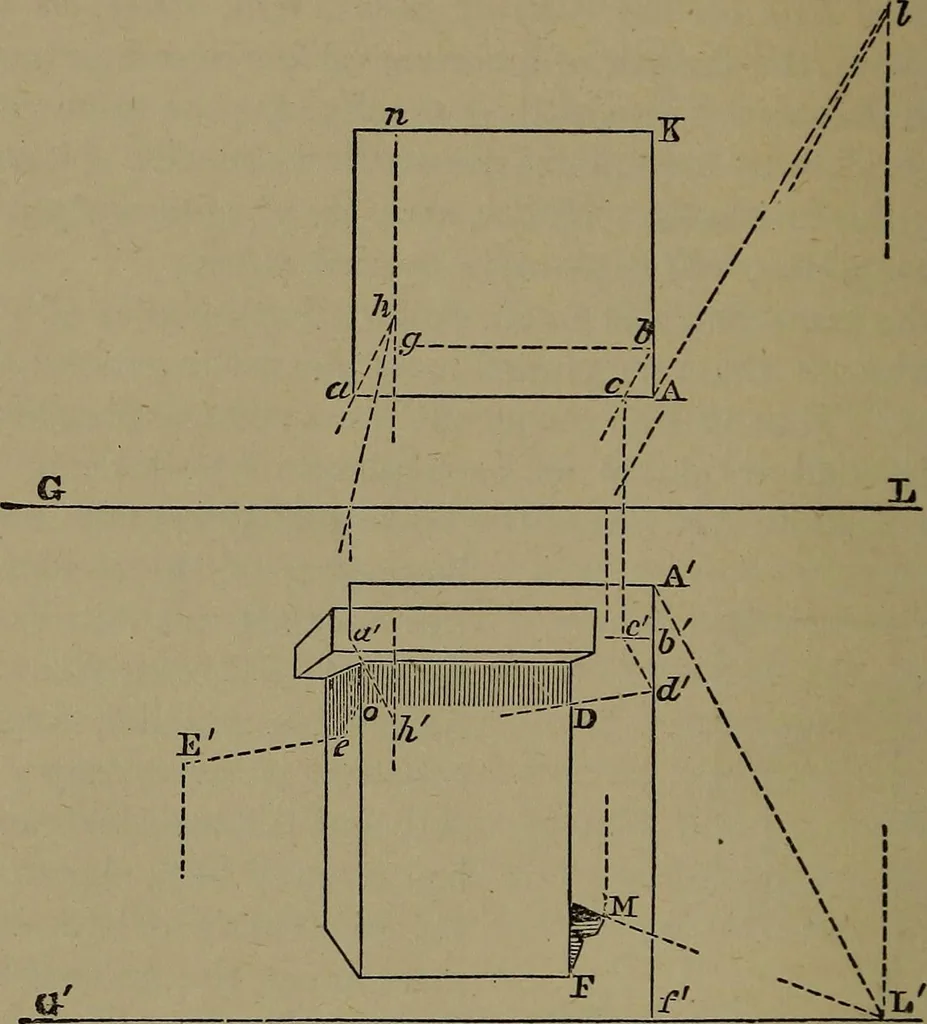

h:^ Fig. 36. 68 LI^STEAE PEKSPECTIVE. This ray pierces the horizontal plane at l^ whoso vertical projectionwhich must be in the ground line (45), is L. Therefore the point … AE Fig. 37. tself is at l^ which is therefore the shadow of AA on the horizontallane.The shadow of the lower front edge, ak.-ah\ of the abacus,upon the front of the pillar, will be parallel to itself (98). Whenthe direction of a line is known, one point in it is sufficient todetermine it; hence, to…
