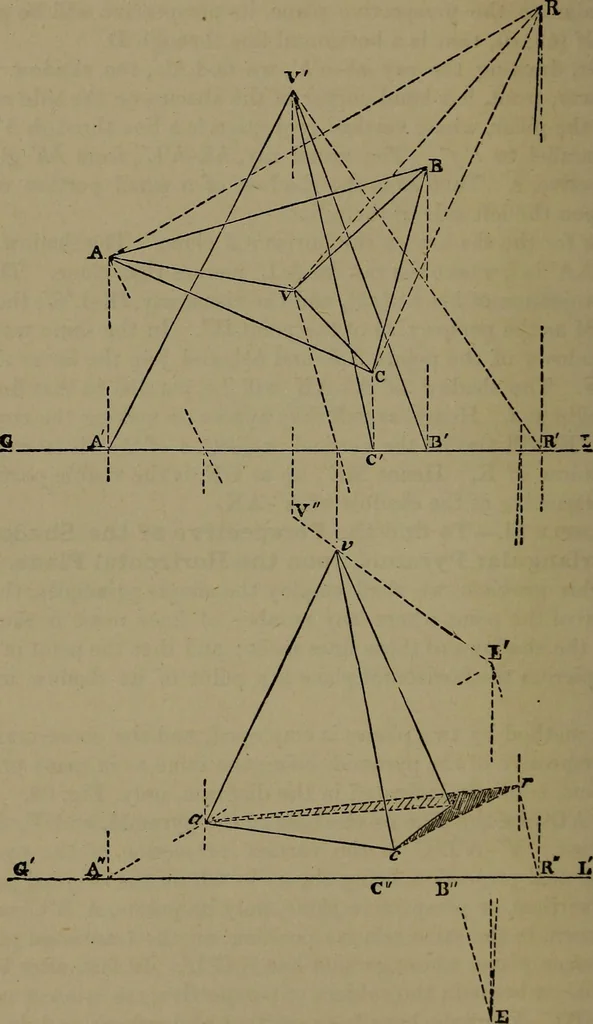

nd line is GL. In fact, after becom-ing quite at home in the subject of perspective, the student will seethat ABC-V might have been omitted altogether; and, in gene-ral, that often only points, and not lines, of the projections ofobjects.need be shown, in order to find their perspectives. Having,… … Fig. 38.Than R is the shadow of W on the horizontal plane, and A and PERSPECTIVES OF SHADOAVS. Yl C being their own shadows—(96—and the second principle abovestated—)RA and RC are the shadows of VA and VC. Then,drawing the visual ray RE-R^E, we find r for the perspective ofRR; R being the vertical…
