Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 285

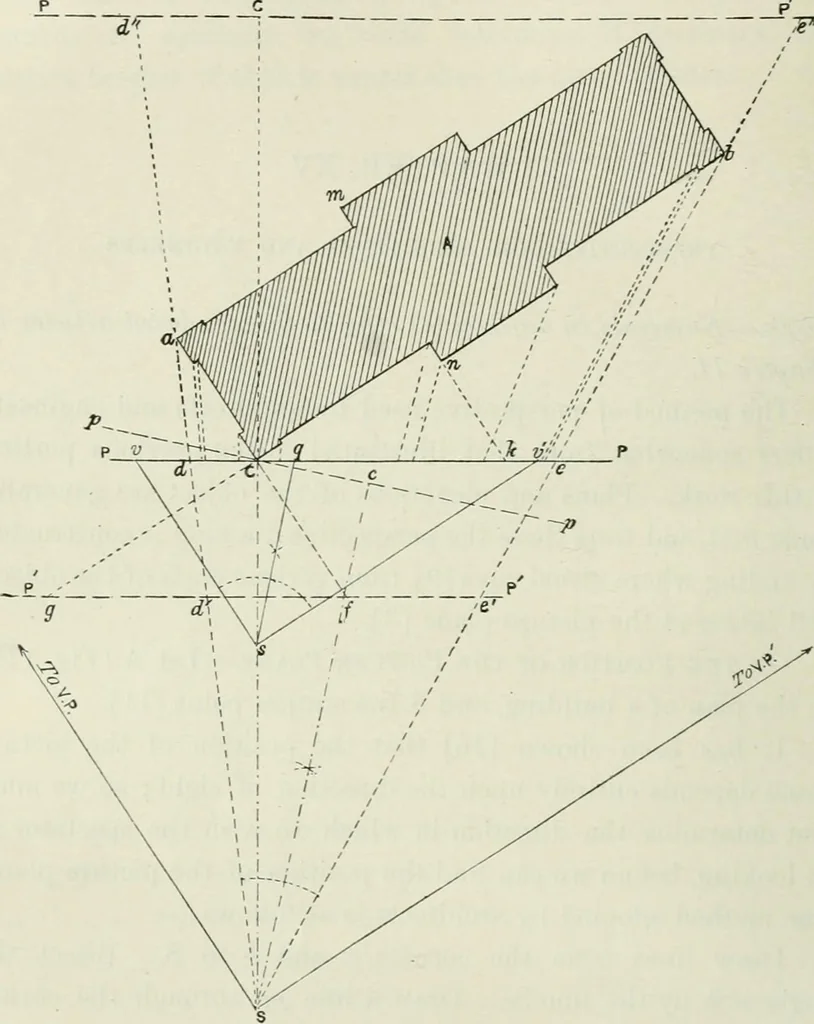

262 COMPLETE PERSPECTIVE COURSE is not so pleasing as is the case wlien the following method ofplacing the picture plane is used. … Fig. 177 Join CS. Draw a line IV through C at right angles toSC. Then PP is the position of tlie picture plane. By placing the picture plane in contact with the corner Cof the building, we simplify the work, because a vertical lineon the picture plane at C serves for a line of heights [46], XV…
Perspective
