Elementary mechanical drawing, for school and shop (1886)
Aborn, Frank, 1845- [from old catalog] · Cincinnati, New York, Van Antwerp, Bragg & co · leaf 106

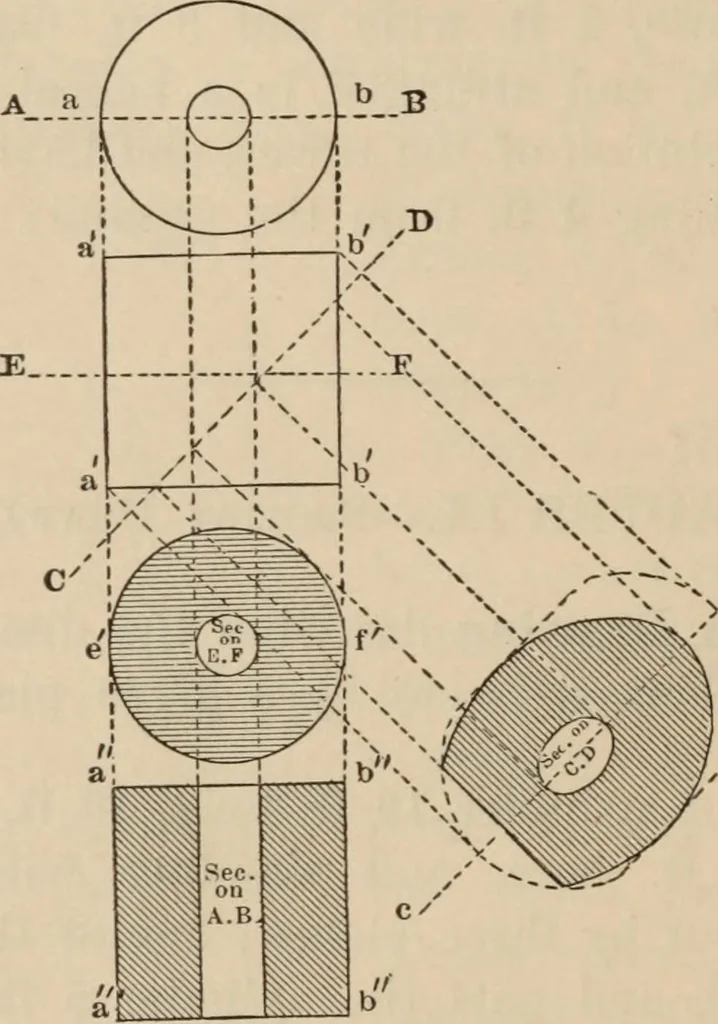

w the plan and elevation of thecylinder, ab and abab. Draw the line EF for the 104 MECHANICAL DRAWING. elevation of the horizontal cutting plane, and per-pendicular to it, draw leaders from the points whereit crosses the different parts of the elevation, andbetween these leaders construct the cross… … Fig. 128. of 45°, and -^ in. from the base. From the pointswhere this line crosses the different lines of the ele-vation of the cylinder draw perpendicular leaders,and perpendicular to these draw an axis, cd. Layoff on these leaders on each side of the axis thewidths of the cylinder at the points…
