Mechanical drawing self-taught: comprising instructions in the selection and preparation of drawing instruments, elementary instruction in practical mechanical drawing together with examples in simple geometry and elementary mechanism, including screw threads, gear wheels, mechanical motions, engines and boilers (1883)

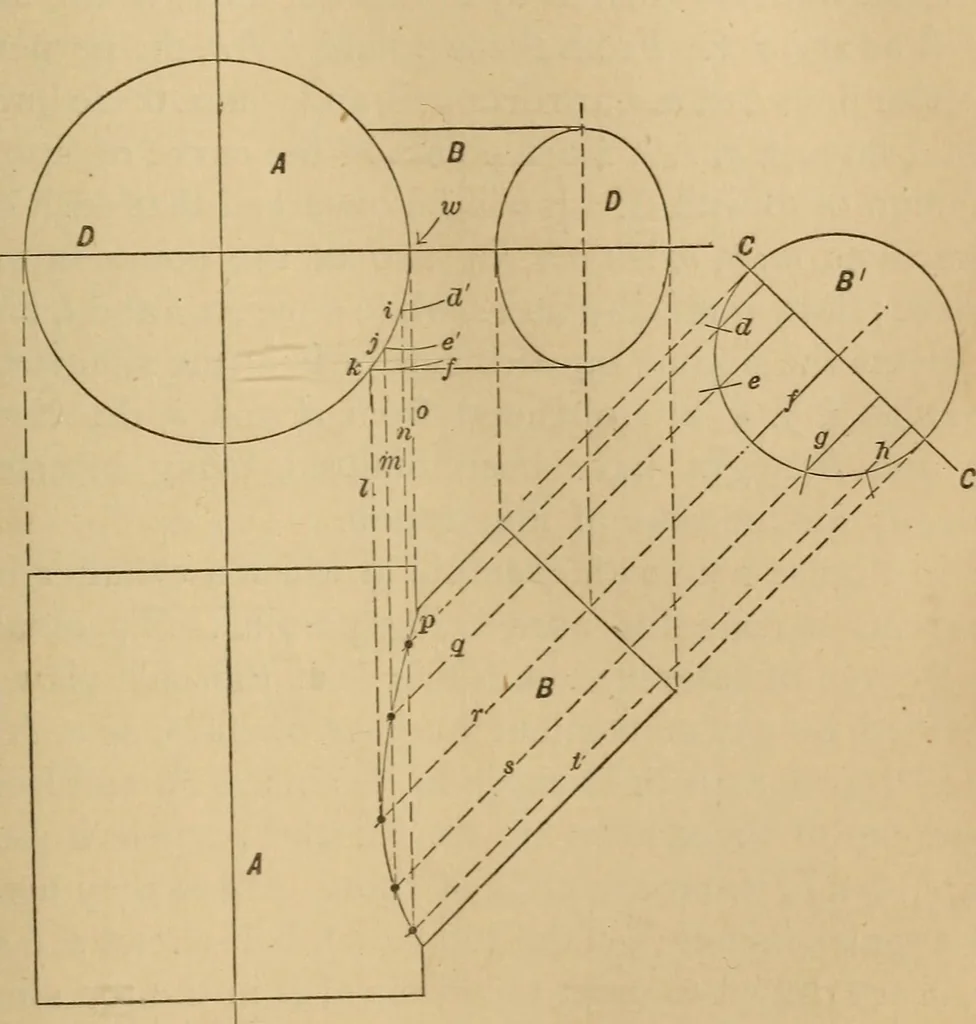

end view, passes witliin the line .r before the curve ofintersection begins, and in transferrino- die lengths of PROJECTIONS. 185 the full lines b, c, d, e, f, to the end view, and mark-ing the arcs b\ d, d\ d, fi they are marked from thepoint w (the point where the centre line of B inter-sects the… … Side [View Fig. 229. In these examples the axis of B stands at a right-angle to that of A. But in Figure 229 is shown theconstruction where the axis of B is not at a rieht- 186 MECHANICAL DRAWING SELF-TAUGHT. angle to A. In this case there is projected from B, inthe side view, an end view of B as…
