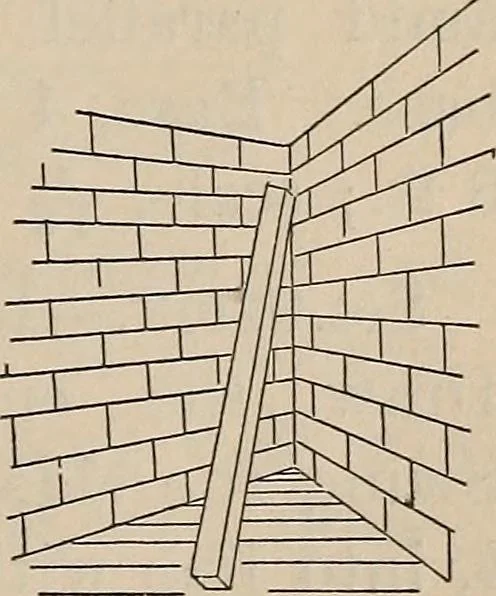

forming and elevation; scale, J in. to the Fig. 94. foot. (Fig. 94.; 74 MECHANICAL DRAWING. Prob. 23.—Draw a plan and front, side, and rearelevations of a common chair; scale, J in. to the ft. -JfC Section V.— Two or more parallel elevations on thesame base-line. Prob. 1.—Draw the plan and parallel…
