Elementary optics and applications to fire control instruments (1922)
United States. Army. Ordnance Dept · Washington, Govt. Print. Off. · leaf 49

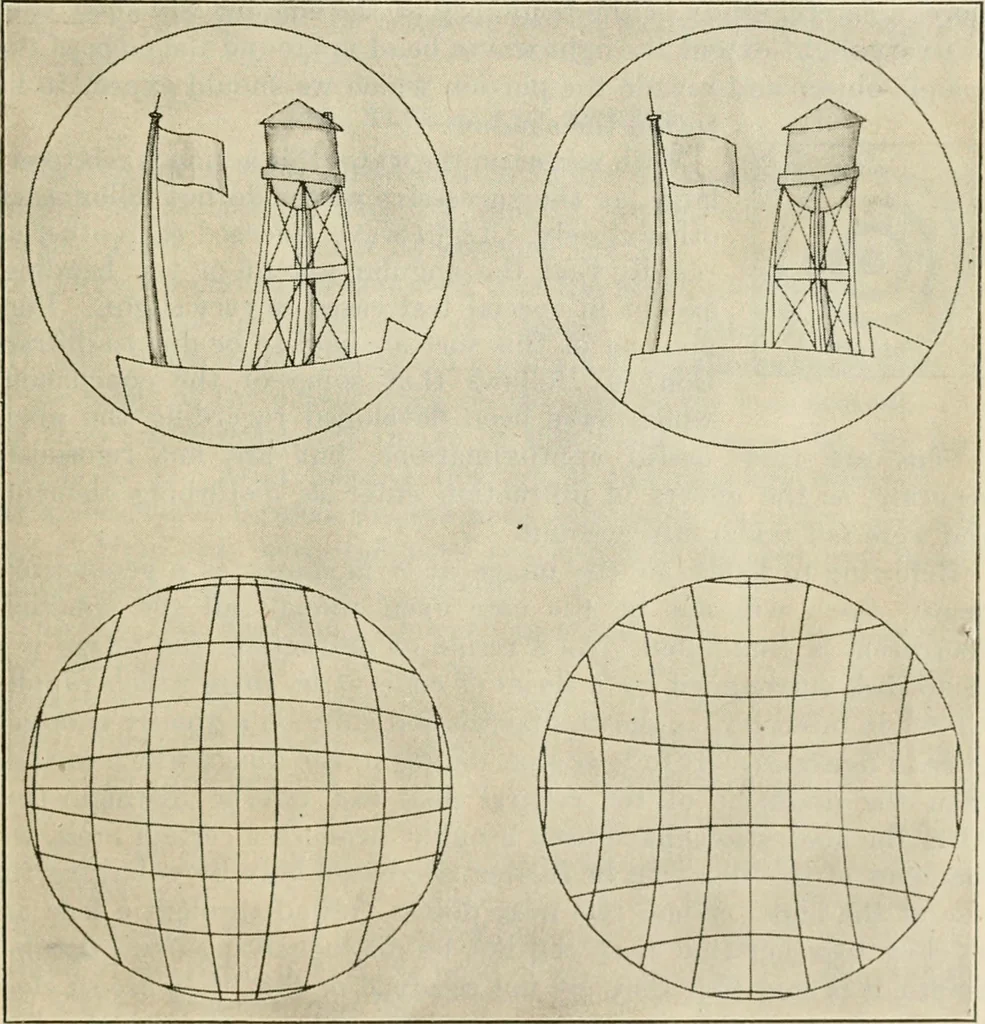

Fig. 49.—Curvature of field. … jO.—Dislurli the field is curved and for different lenses the curvature may be fromor toward the center. The distortion is termed *barrel-shaped in 46 the first case and hourglass or pincushion in the second. Thetwo lower diagrams show the appearance of a net of orthogonal lineswhen imaged by a…
