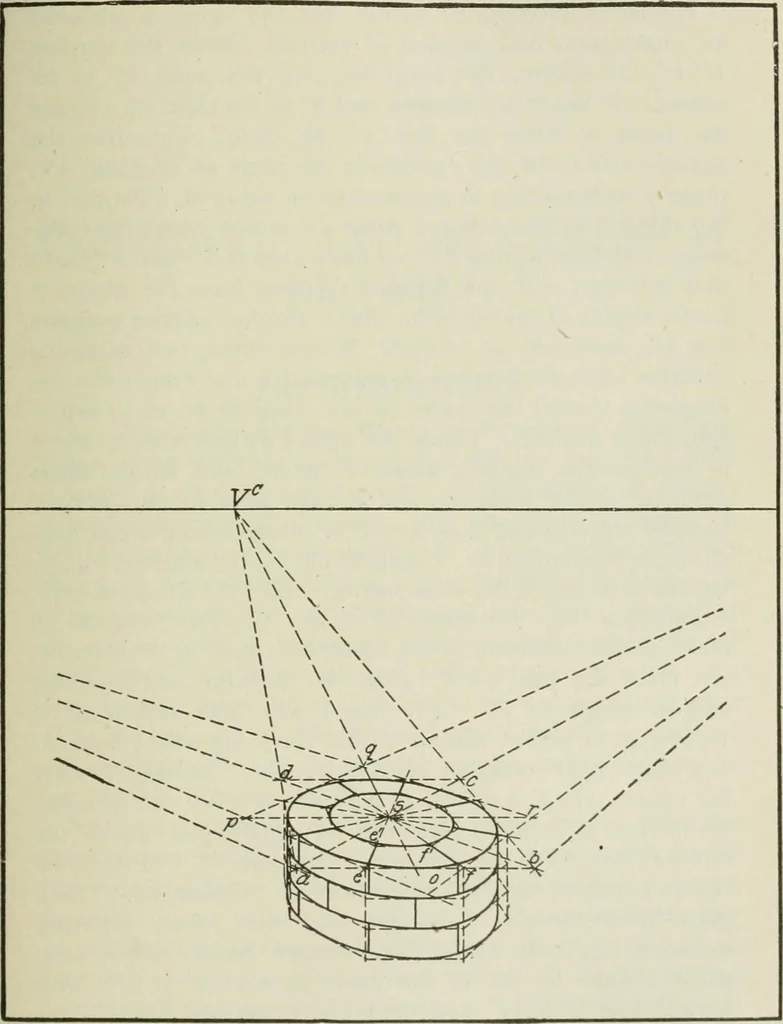

ine b w toward V^; draw thecontinuation of the joint lines. Locate x \ above x.Through the point where the joint line from / to y inter-sects with the line from 8 to y, draw the line x z. Where j/2-crosses the several horizontal joints marks the positionfor the vertical joints between the stones;… … Date Time consumed inexecutine this sheet Name of Student. Class Lettersand Aumber n 72 PROJECTION DRAWING §2 32. Problem 38. Exercise VI, Sheet V.—Problem 38is similar to Problem 37 except that the circle is renderedas a horizontal disk instead of vertical. Draw the horizonV^ V^y as before, \2…
