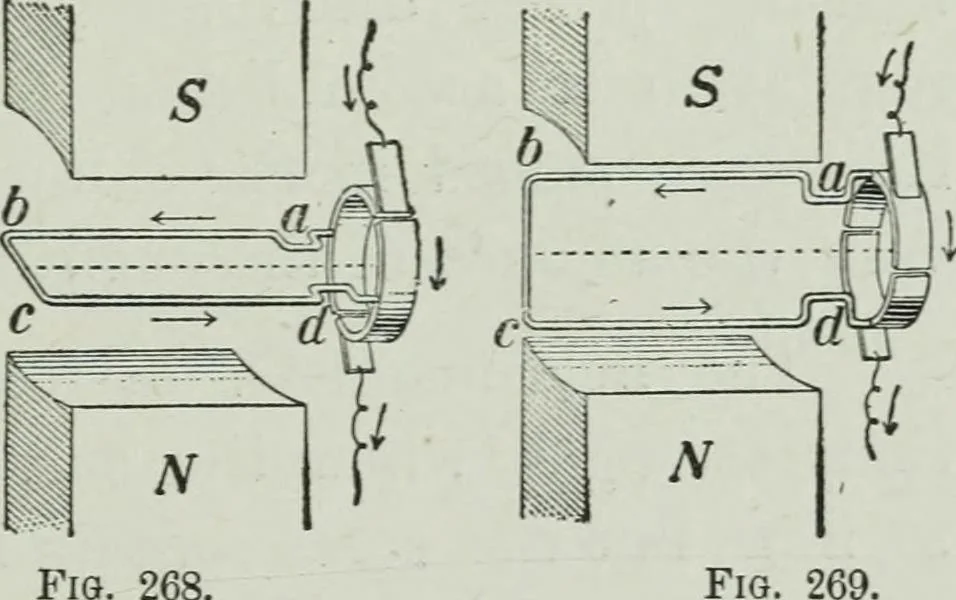

ample, the case of a single coilrevolved in a bipolar field, as considered in § 257. Thecommutator consists of twosemi-circular plates, (Figs.268 and 269), and thebrushes are so placed thatthey rest upon the insulat-ing material between theplates at the instant thecurrent is changing direc-tion in… … Fig. 268, Arrangements for transforming the alternatingcurrent in the armature into a direct-currentin the external circuit. 222 INDUCED CURRENTS-DYNAMO AND MOTOR
