Elementary projection drawing. Theory and practice. For preparatory and higher scientific schools, industrial and normal classes; and the self-instruction of teachers, inventors, draftsmen, and artisans. In six divisions .. (1880)
Warren, S. Edward (Samuel Edward), 1831-1909 · New York, J. Wiley & sons · leaf 36

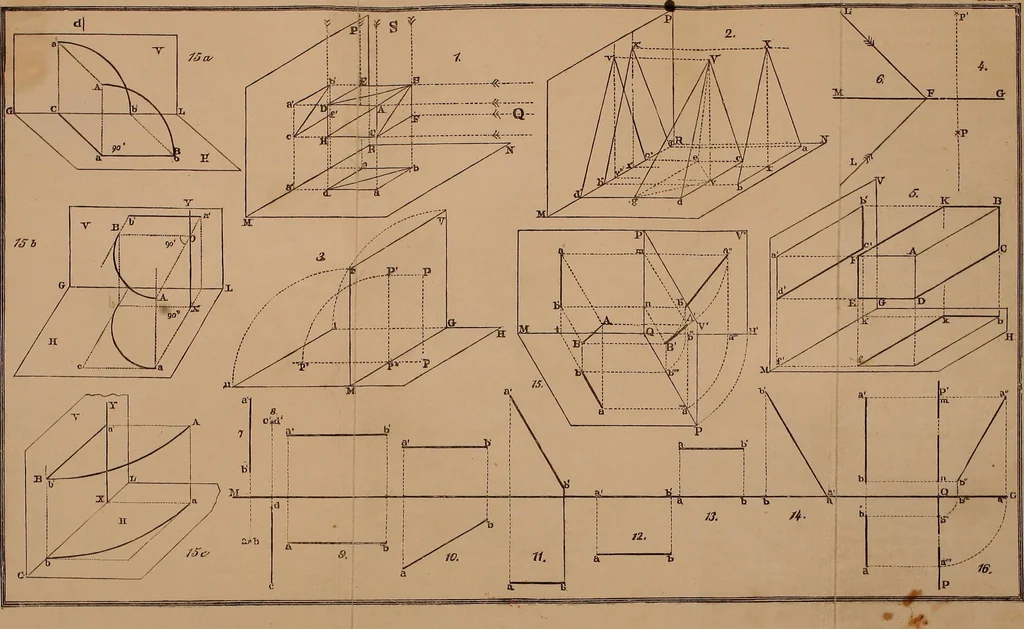

PROJECTIONS OP SOLIDS. 13 3d. AE—AC is the left hand face; etc. 37. Prob. 11.—To construct the plan and two elevations of avrism having the proportions of a bride, and placed with its lengthparallel to the ground line. Plate II., Fig. 18. 1st. abed is the plan, f of an inch broad, twice that…
