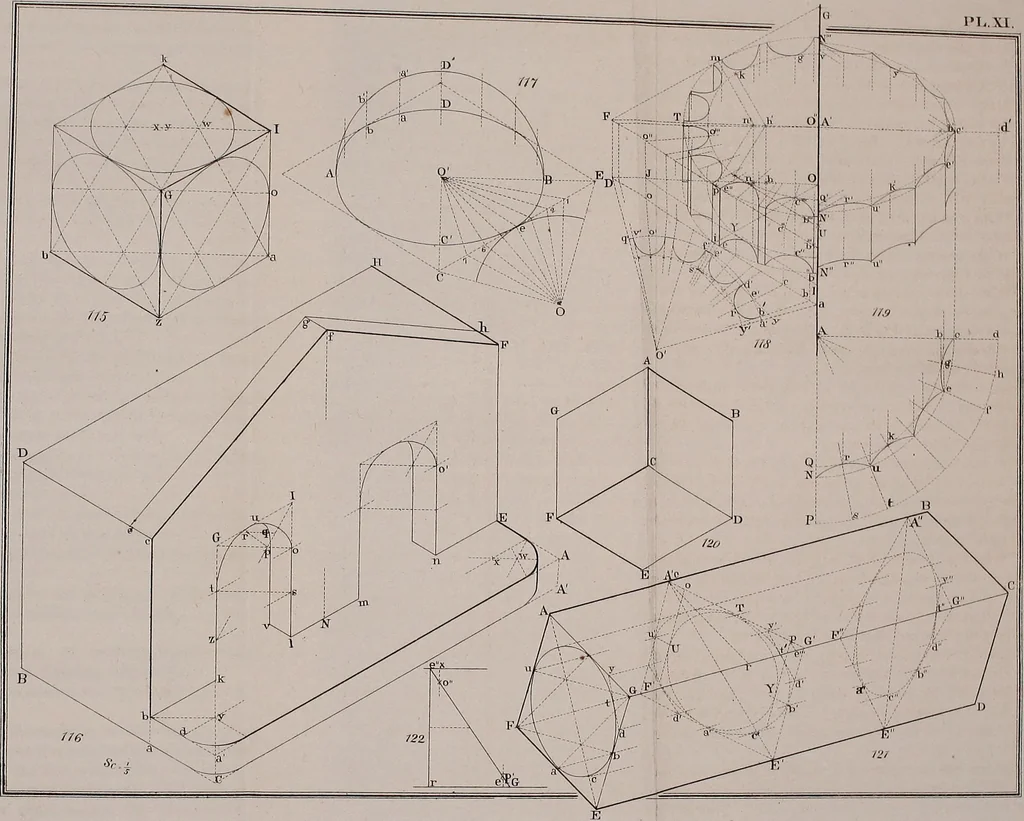

STONE STKTTCTURES. 105 this arrangement in the plan, 7iG,fb, gd and DC will represent thejoints of alternate courses, and the lines km, &c. midway betweenthe former, will represent the joints of the remaining intermediatecourses. This completes a partial and dissected plan which shows more…
