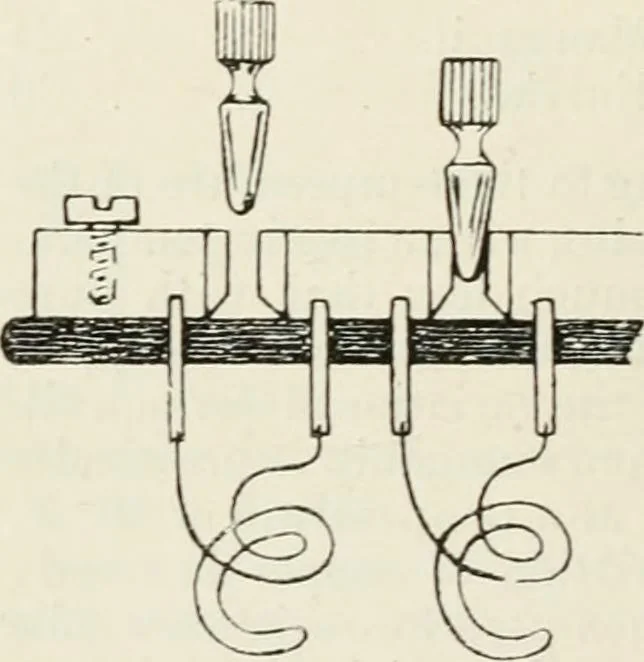

insulated with one ortwo layers of silk and con-nected between the brassblocks fitted on the ebonitetop. By removing any of thecircular brass pegs tlie coil ofthe value marked is inserted ;thus in Fig. 80 a total resist-ance of 500 has been placedin the circuit. The pegsshould fit tightly and be… … Fi<;. 81.—Elements cf double woundresistance coils. TELEGRAPH INSTRUMENTS 105 values is illustrated iu Fig. 82. The resistances are 50,100, 200, 300, 400, lOUO, 2000, and srixe a range from50 to 4050 by gradations of 50.
