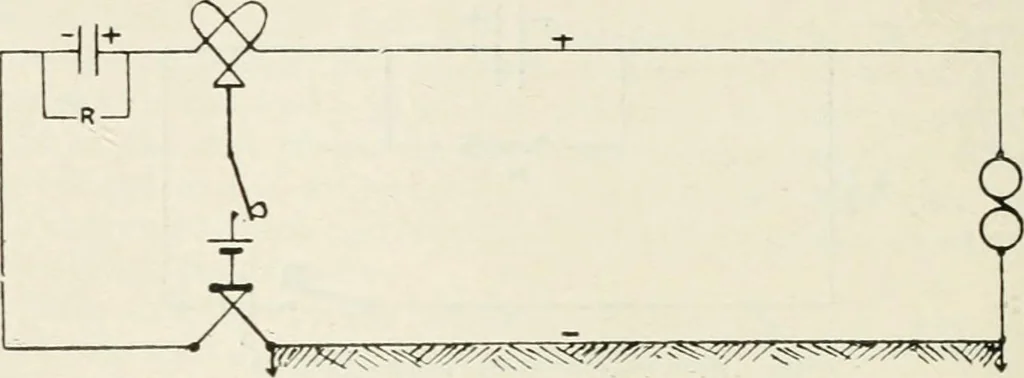

. When the key is released the twoplates of the condenser discharge through the resistanceand neutralization results. Fig. 136. \n both the circuits tlu^ condifions and re-sults are as in the previous example : the initial imijulses i62 ELEMENTAE Y TELEGEAPR Y from the condensers passing to the… … Fio. 137.—CoDflenser cliarge and cliscliarge—III. ning + impulses from earth and comjDensation circiiit passto the battery through the polarized sounder or relay coils,producing equal and opposite effects. When key is releasedthe condenser neutralizes through B and the line charge(the sending end…
