Handbook for the use of electricians in the operation and care of electrical machinery and apparatus of the U. S. seacoast defenses .. (1904)
United States. War Dept · Washington, Govt. print. off. · leaf 88

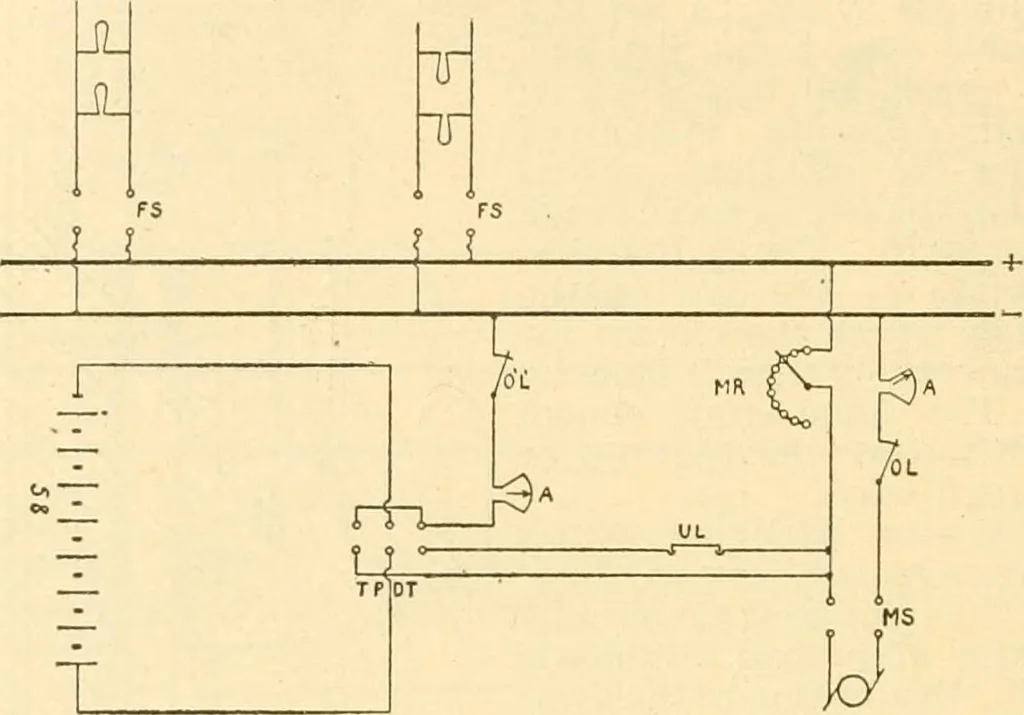

battery reserve, requires little apparatus,loses very little energy in regulation, gives little chance for accident, and it issimple. Lamps are 110 volt; dynamo, 110 to 150 volts; 58 cells charged and dis-charged in series vary from 110 to 145 volts. 1. Dynamo to light lamps—closeO L, MS, and… … 86. Preble Switchboard. (E) KEY WEST SWITCHBOARD. The relative sizes of wires, fuses, switches, etc., and the divided bus bars aresho\^^l in fig. 87. A shunt switch on the dynamo to the series field may be openedto raise the voltage. The ten end cells, active or nonactive, may be gradually added or…
Electric machinery · Searchlights · Coast defenses
