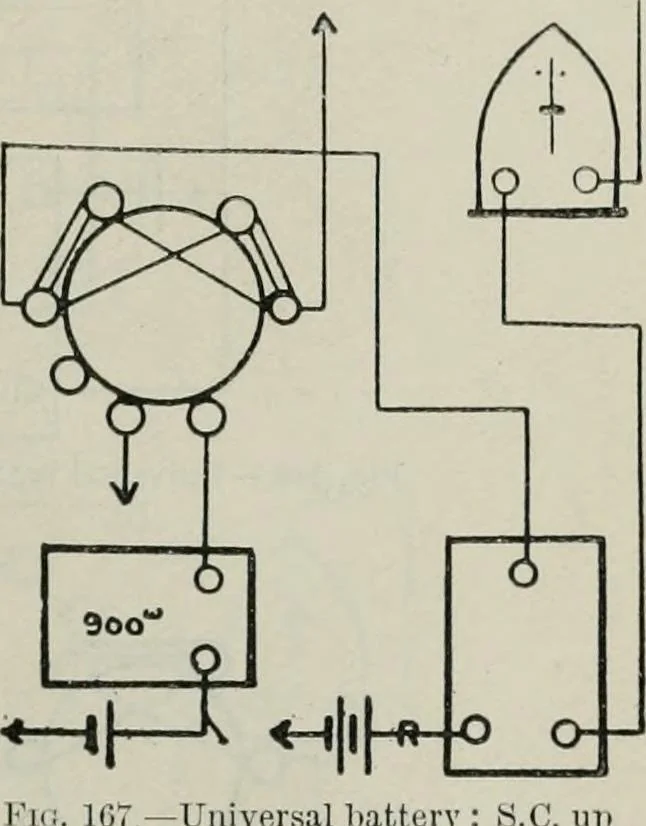

per volt ofthe power used. The tongue of the relay (T terminal) is earthconnected, and the pole of a single earthed battery is joinedto the sounder coils. Each of the battery leads passesthrough a 1-ampere fuse before reaching the instrument. S.C. relay and sounder circuits have their… … li. 107 —Universal battery : S.C. u])stfitioii. For down statinn chaiigi!battery pole (U) and D of relayand falvanometer terminals. 194 ELEMENT A R Y TELEdEA EH Y sets, because only one pole of a single Ijatlery Is avail-able (either + or —), the other being earthed. The np
