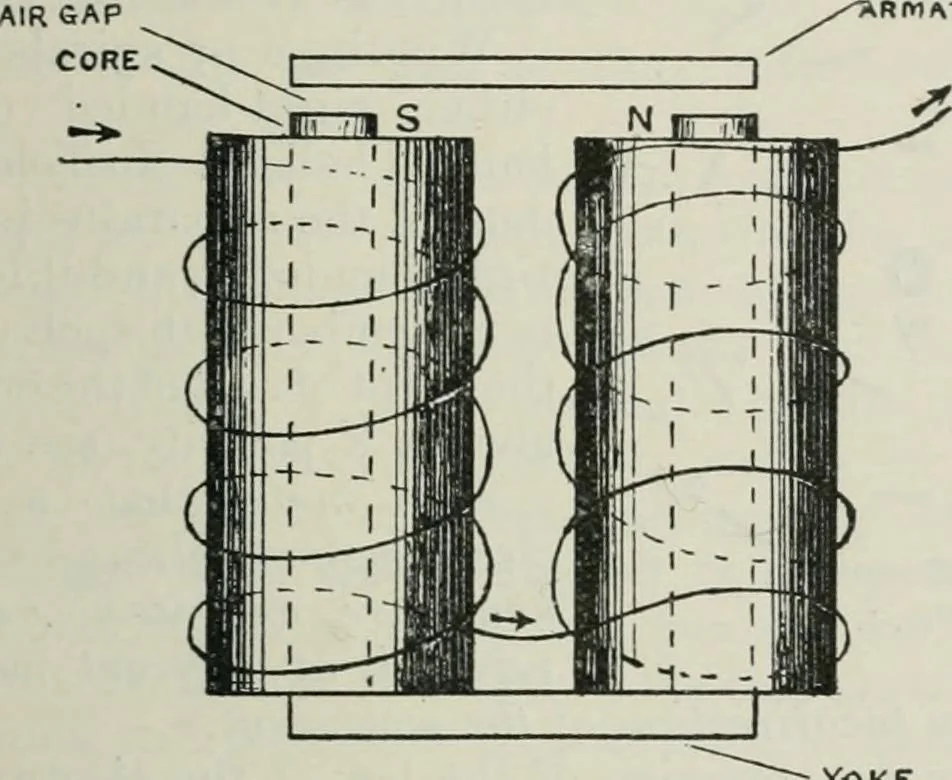

i-al is woimd on a bar of softiron the lines of force are nearly all concentrated throughthe iron, which thus becomes a temporary magnet. Aspreviously mentioned such a combination is called an BLEGTROMA GNETS 19 electroiiiagiut and its polarity depends upon the directionin which the coil is wound.… … YOKE Fio. 3.—Electromagnet. magnet. Fig. 3 shows the connnon horseshoe form, the cores standing upon a connecting bar of iron, and the armature is fitted across both the cores in the same manner as the heei^er of permanent magnets. The wire in the coils must be connected so that the windings Avould…
