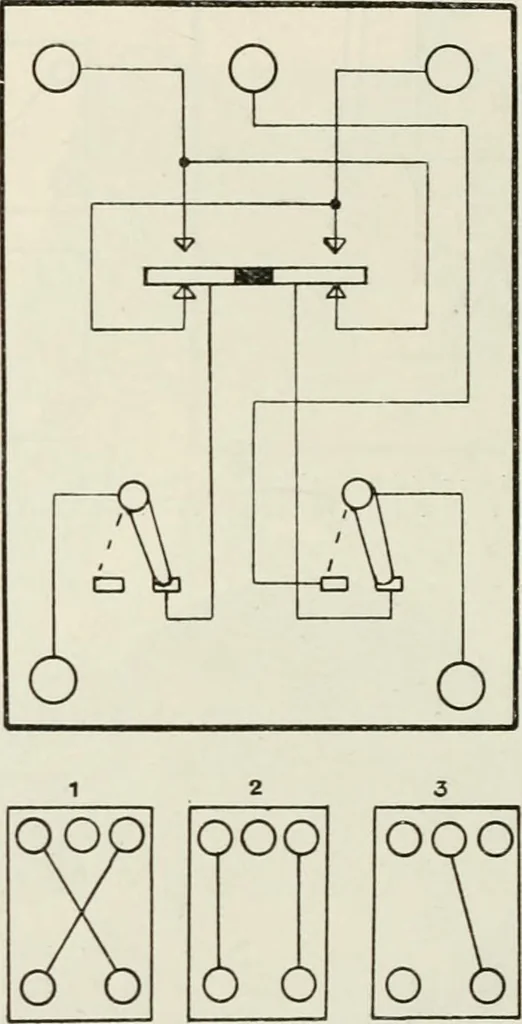

uits. With a(ljusta])le contact screws, i)latiiiuiii con-tacts, mounted on an ebonite slab lixed on a j^olisliedmahogany base, tlie Doul)lo current Vex, five terminal, 74 ELEMENTARY TELEGBAPHY as it is called, is a most com-enient piece of apparatus ; ascan be seen from the diagrams (Fig. 50) the… … Firi. 50—Internal connections of 5-terminal key. (1) Snitch to send, leverat rest; (-2) switch to send, lever depre.ssed ; (3) switch to receive. vided with four battery terminals, two line terminals cappedwith ebonite, and each half of the key can be used independ-ently if desired. As will be seen…
