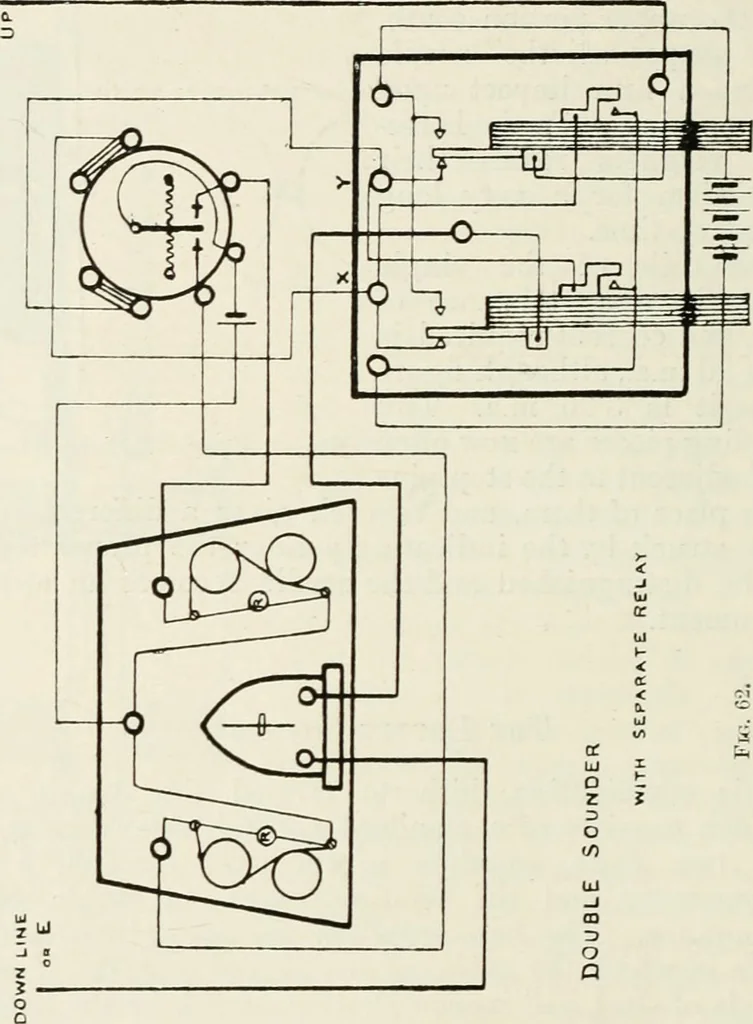

the right indicates dashes. The totalresistance of the sounders, which have 420 shunts, is 20each; one is connected to the terminals Df7 on the relay,and the other to (7>) and (IJ); that is, between the relaycoils joined in parallel. Current required 14 to 17 m.a.The connecting strap of tiie two… … trated in Fig. 63. Resistance between the terminals is430, working current 10 m.a. The apparatus works per-fectly in the line circuit, without relay or local battery, andis consequently admirably adapted for railway systems. TELEGUA FH WSTR UMENT8 83
