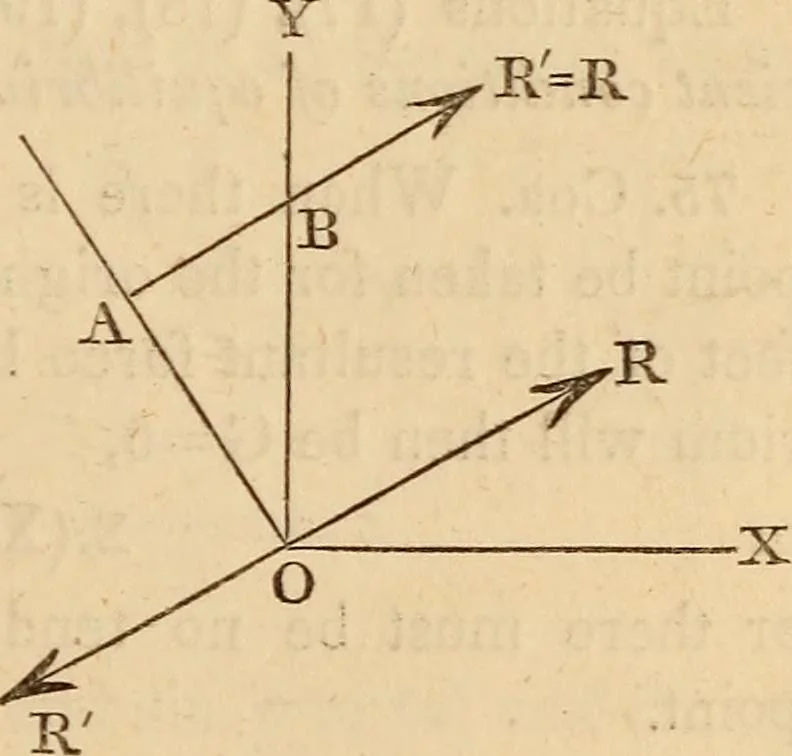

.X,R sin. d=2.Y. 2.YTan. 0=^, (14) and R2=(2.X)2+(2.Y)2. (15) 72. Schol. 1. The equations (13), (14), and (15) determinethe magnitude of G and the magnitude and direction of R.To construct these insults, drawthrough the origin O the line OR,making the angle 6 with OX, torepresent R. Then put… … 36 STATICS. opposite direction to the resultant force; draw OA perpendic-ular to OR and equal to r, and AR parallel to OR. ThenRAOR represents the resultant couple. The two forces at O,being equal and opposite, may be removed, and we have thefinal resultant acting in AR, which makes the angle 6…
