Niaudet, Alfred, 1835-1883. [from old catalog], Fishback, L. M., [from old catalog] tr · New York, J. Wiley & sons · leaf 48

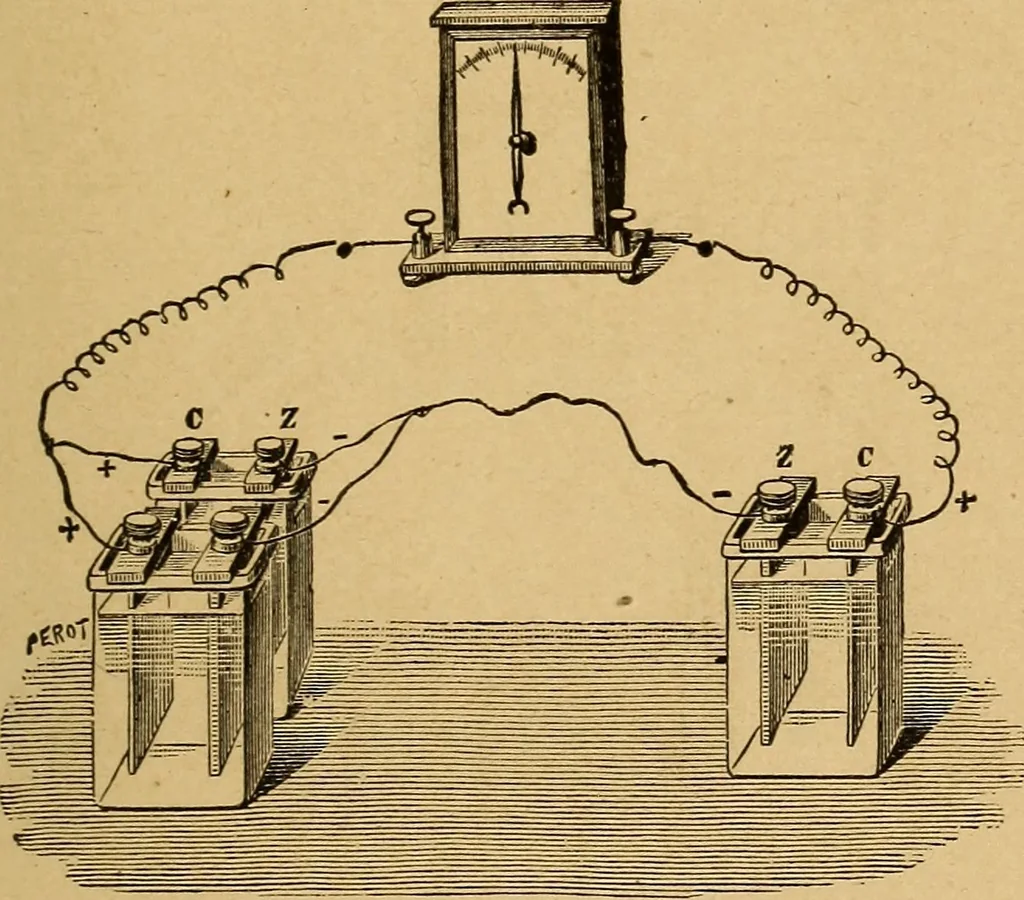

place in the GENERAL REMARKS UPON BATTERIES. 29 same circuit (Fig. 10) a small voltaic cell in opposition toa larger one of the same nature; the needle will remainstationary, thus showing that there is no current. Thisresult will appear very strange to the uninitiated reader,and deserves to be… … Fig. 10. produced by the smaller one, as the deflections of theneedle show. But if these two cells be opposed to eachother, the effect of one is counterbalanced by the effectof the other, and no current flows through the circuit.The conclusion of this capital experiment is that theelectromotive…
Electric batteries
