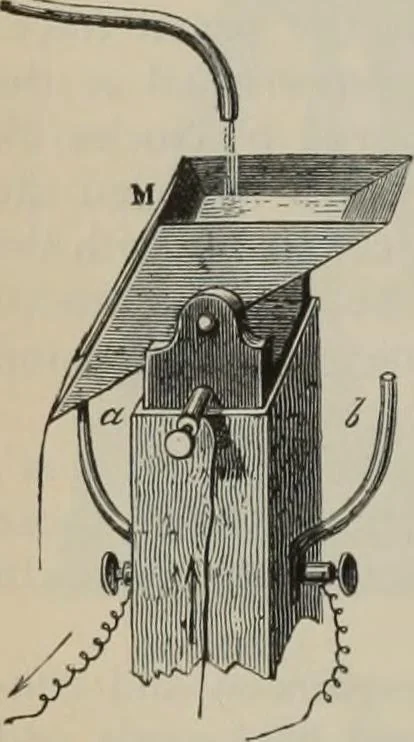

(^n of the winds and thecurve H by a pencil at the end of a rod, //, which is worked by an electro-magnet, e. On the roof is a funnel which collects the rain, and a long tubeleads the water to a small water-balance with the cups placed near themeteorograph (fig. 1035). To the axis of the scale-beam… … Fig. 1035 C (fig. 1032), and hence to the electromagnet, e. Then the right cup, beingin turn full, tips in the opposite direction, and the contact b now transmitsthe current to the electromagnet. Thus, at each oscillation, this latterattracts its armature, and with it the rod u, which makes a mark…
