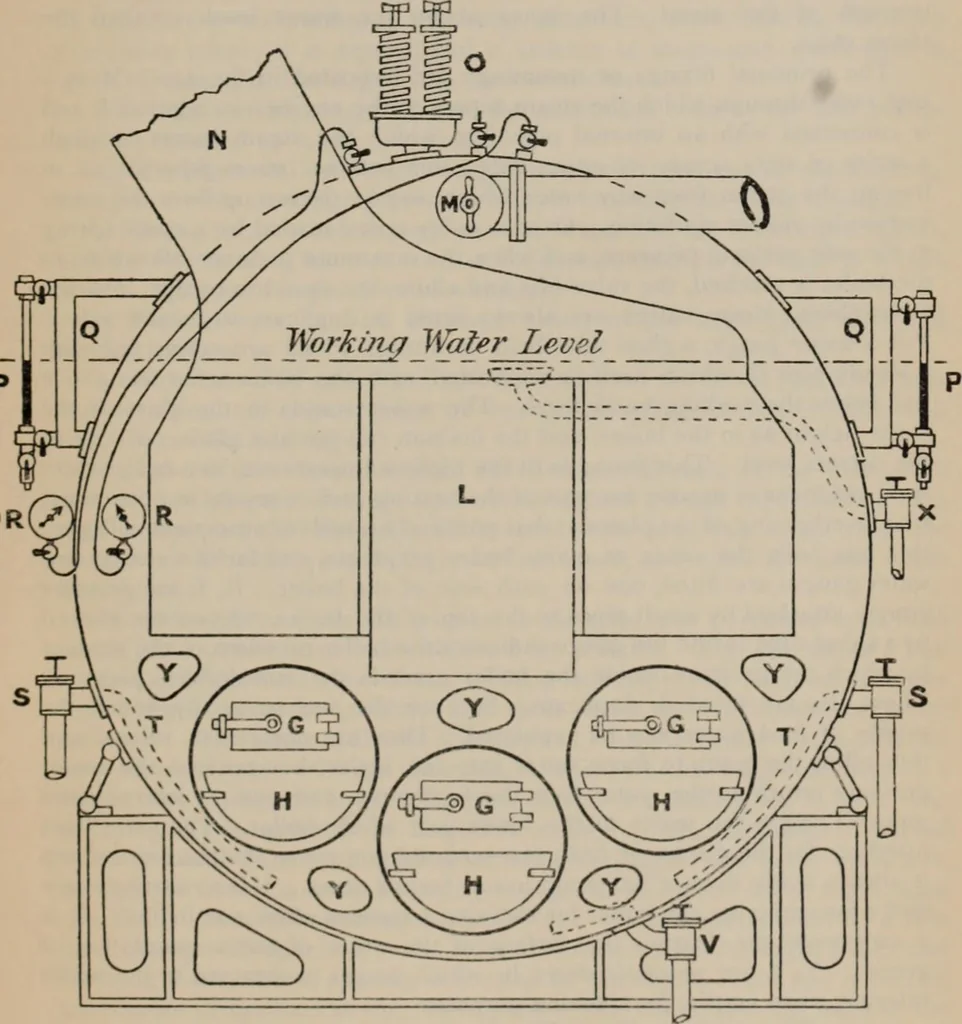

volatile constituents of thefuel which are distilled off into the combustion chamber, where they burn -473] Tlie Boiler 471 completely. The hot products of combustion then pass through the smalltubes, giving up their heat to the water and entering the smoke box L, whichis a casing built over the… … Fig. 440 water is sometimes carried through a scries of small tubes placed in theuptake ; this fitting is called ■\ feed heater. The circulation of water in the boiler is roughly as follows : the feedwater is pumped through a valve on the side of the boiler and by an internalpipe T (fig. 440) is…
