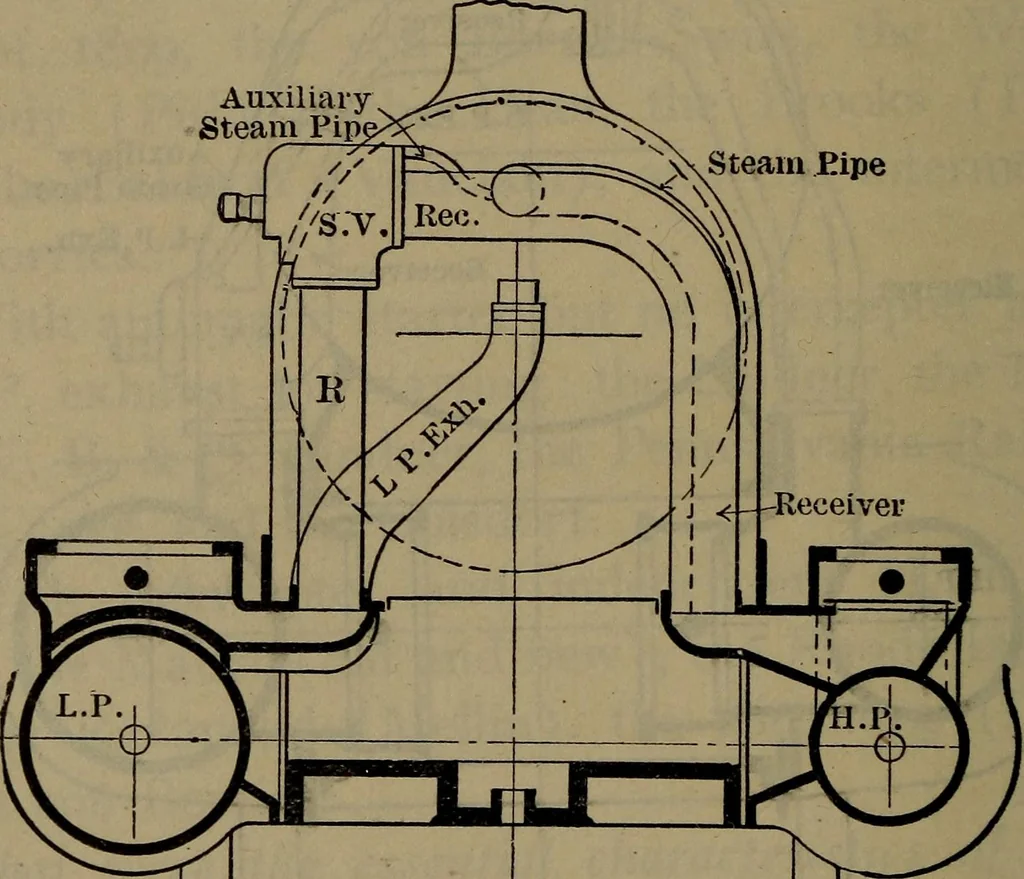

. Cyl.Fig. 326. Intercepting Valve, 518 LOCOMOTIVE CATECHISM. Q. Can these locomotives ever work simple? A. No, because the high-pressure cylinder always exhaustsinto a closed receiver, never into the open air direct. Q. Describe the modified von Borries two-cylinder receiverengine, as used in… … Fig. 327. Two-Cylinder Receiver Compound. the driver (say when with the H. P. piston on a center)# livesteam passes through the auxiliary steam pipe and acting onthe lower end of the spindle S raises the valve V to the posi-tion Vlf against a seat. The spindle in raising opens smallports p, pt…
