Elementary treatise on physics, experimental and applied : for the use of colleges and schools (1906)
Ganot, A. (Adolphe), 1804-1887, Atkinson, Edmund, 1831-1901, Reinold, A. W. (Arnold William), 1843-1921 · New York : Wood · leaf 873

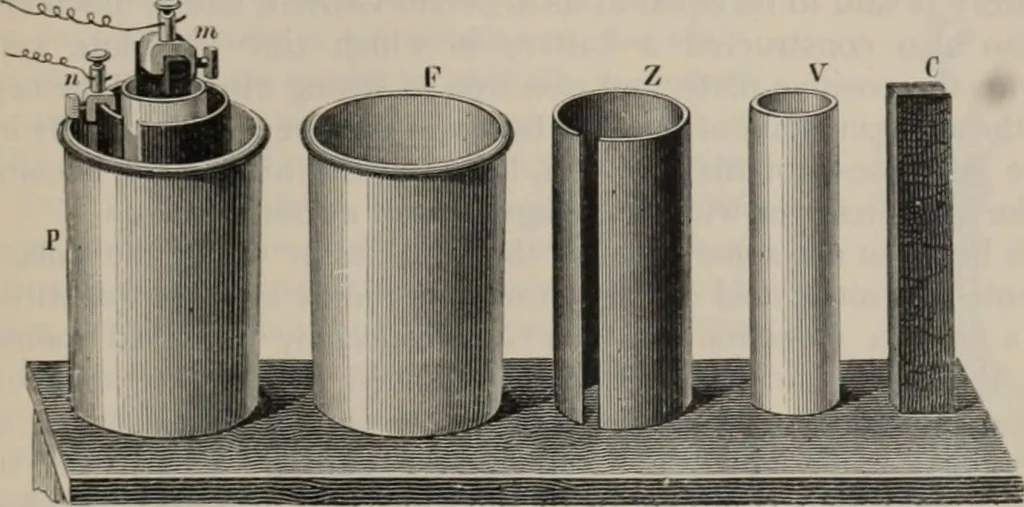

Fig. 812 -825] Bunsens Battery 847 following parts :—i, a vessel, F (fig. 813), either of stoneware or of glass,containing dilute sulphuric acid ; 2, a hollow cylinder, Z, of amalgamatedzinc ; 3, a porous vessel, V, in which is strong nitric acid ; 4, a rod of carbon,C, prepared in the above… … Fig. 813 A single cell of the ordinary dimensions, 20 cm. in height and 9 cm. indiameter, has a resistance of about 0*14 ohm, and an E.M.F. of about1-82 volt (848). When the cells are arranged to form a battery (fig. 814) each carbon isconnected to the zinc of the following cell by means of the…
Physics
