Bacon, John Baptiste Ford · San Francisco, P. Elder and company · leaf 104

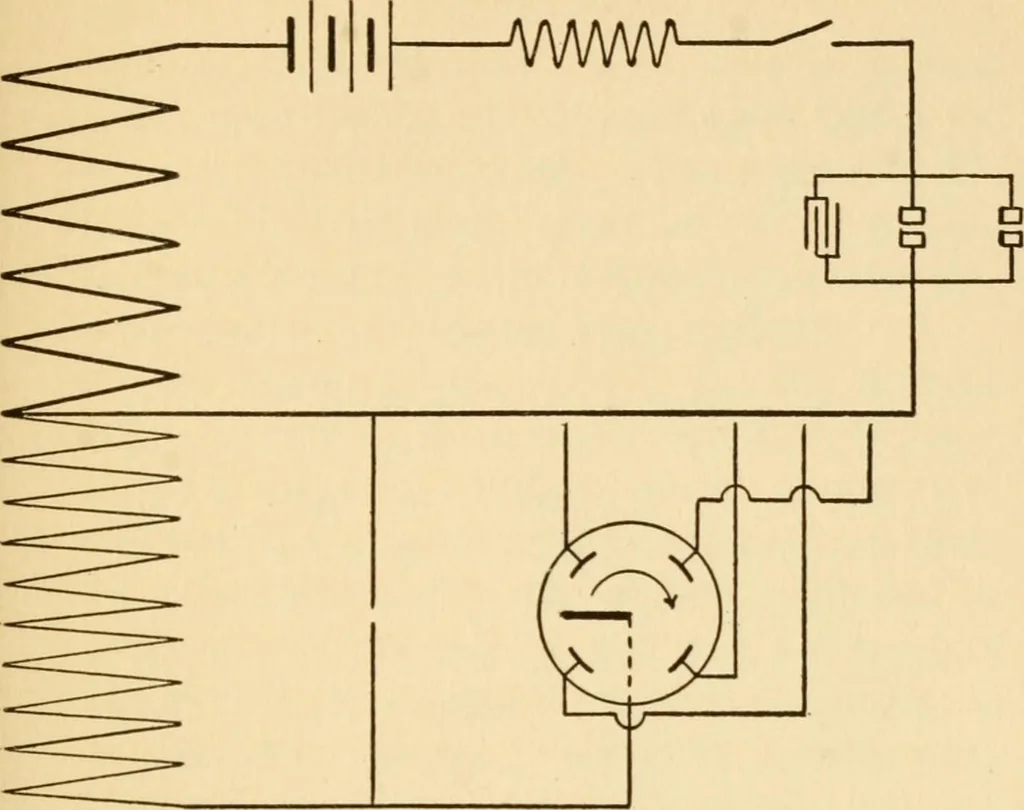

omplish this the first magneto istimed to the engine and the second magneto istimed to the first. In this way the breakerpoints on each one can be made to separate atthe same instant. With a battery system either a vibrating ora non-vibrating coil may be used. Vibratingcoils will give a rapid… … DIAGRAM OF A BATTERY SYSTEM OF IGNITIONWITH A NON VIBRATING COIL IGNITION demagnetizes the core. The contact is thenmade again by the vibrator springing back andthe operation is repeated. When a non-vibrat-ing coil is used there must be mechanically-operated breakers to break the primary…
Airplanes
