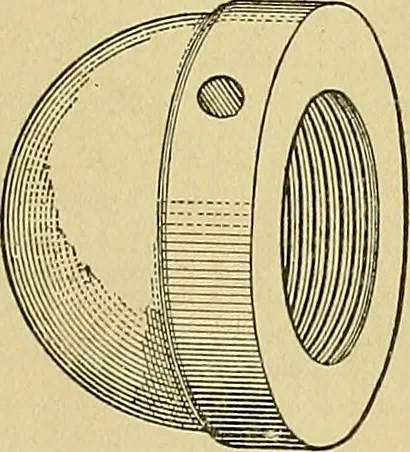

be the sum of thepartial dimensions.Note also the method of dimensioning curves; the differentviews in which the different diameters are shown on the draw-ing; the method of turning up the sectionin the arm of the hand wheel, and that in thesection of the hand wheel the arms are notsectioned,… … Fig. 108. — Perspectiveof End Cap. no. page 149, gives the general layout of this sheet which is to becopied and then the dimensions filled in from measurementstaken on the Clamp that the drawing illustrates. Before drawing this sheet read, and be prepared for examina-tion on, paragraphs, as…
