Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 161

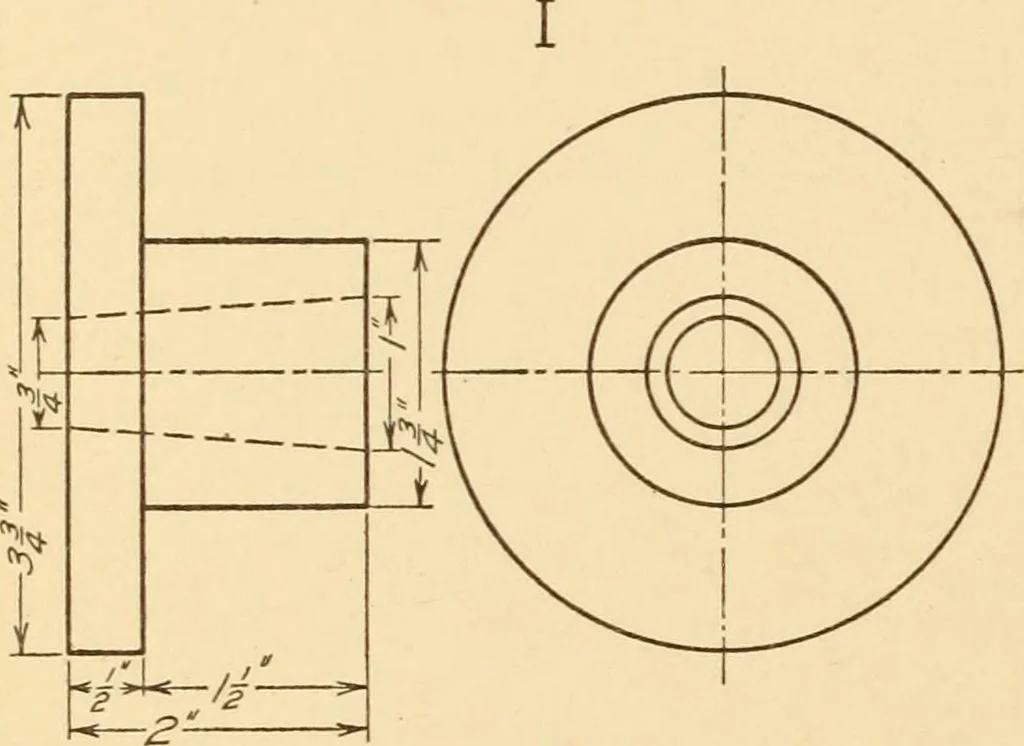

t handview in section. PROB. 25, Fig. 247, Space IV.—Draw two views of the SHIFTING COLLAR.Left hand view in section. PROB. 26, Fig. 248, Space I.—Draw two views of the PISTON with right handview in section. PROB. 27, Fig. 248, Space II.—Draw two views of the PISTON FOLLOWERwith left hand view in… … I L_L ^U-^- 4^^ .2
