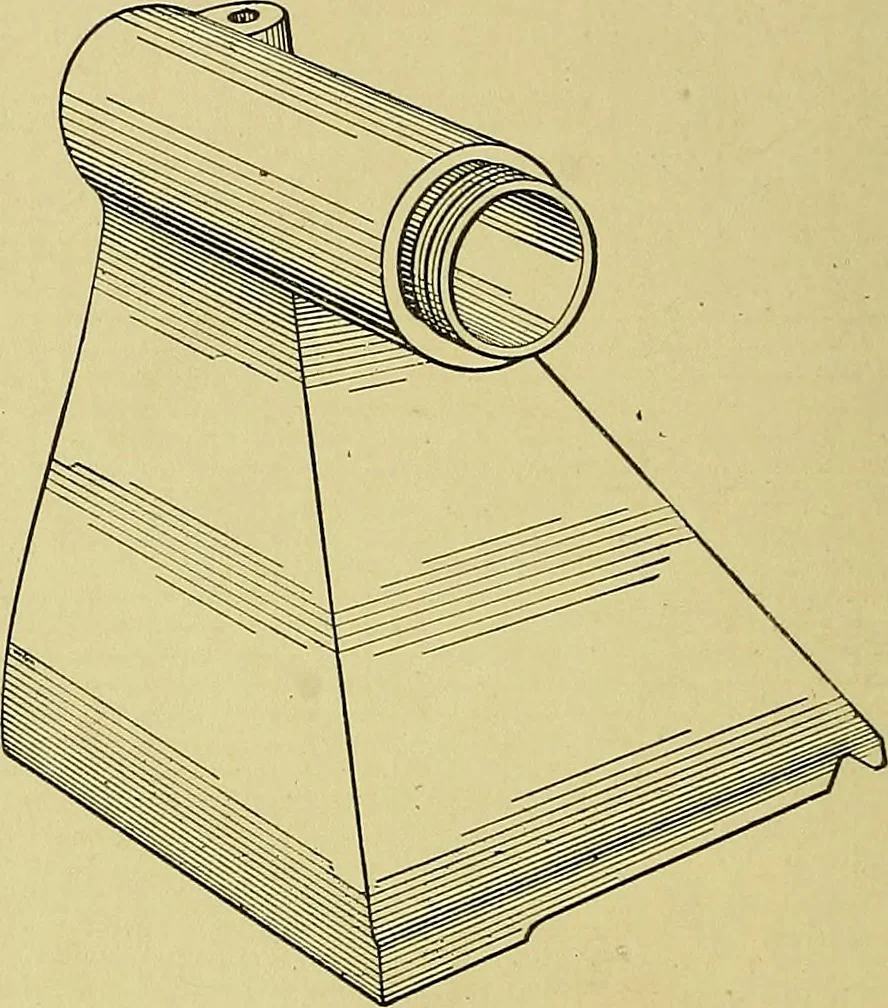

the Acme National Thread (see page 88, section D,drawing C). Notice that the direction of the thread shown onthe section of the nut is reversed from that on the screw andbe able to explain thereason for this. 108. Sheet #9- Make aworking sketch, showingthree views of the maincasting of the… … Fig. 117. — Perspective of Main Casting of Tailstock. 109, Sheet ftio. Make working sketchesdirectly from the Bearing Cap (see Fig. 118) andThe Stationary Flange (see Fig. 120, page 154). no. Sheet #11. Make working sketches ofthe Cone Pulley (see Fig. 121, page 154), onFig. 118.—Perspective…
