Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)

American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 142

An illustration from Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving, 1909, leaf 142

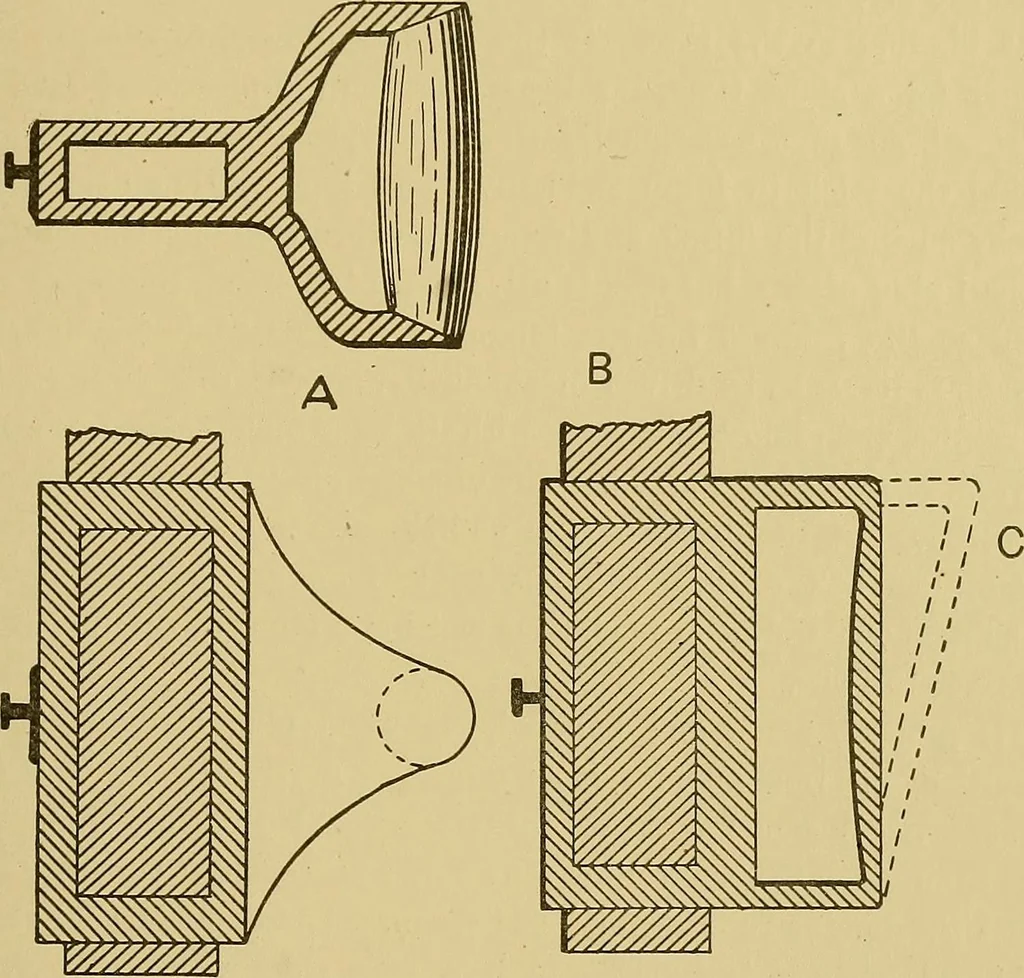

when the cam works around, all, or almost all, ofthe outer end of the cone will be in contact with the point. Dogs on Picking Arms. There are three distinct kinds- of 126 WEAVING. 113 dogs used on the picking arms; (Fig. 77) A, B, C. A is certainlythe better; there is almost a straight pull on the… … Fig. 77. Picking Dogs. Lug straps will last ten times longer by the use of A than they willby using B or C. Picking Stand and Shoe. This is called the Stearns parallelmotion. When fixing the picker stand to the rocker shaft, careshould be taken to see that the picking stick moves freelyin thebox,…
