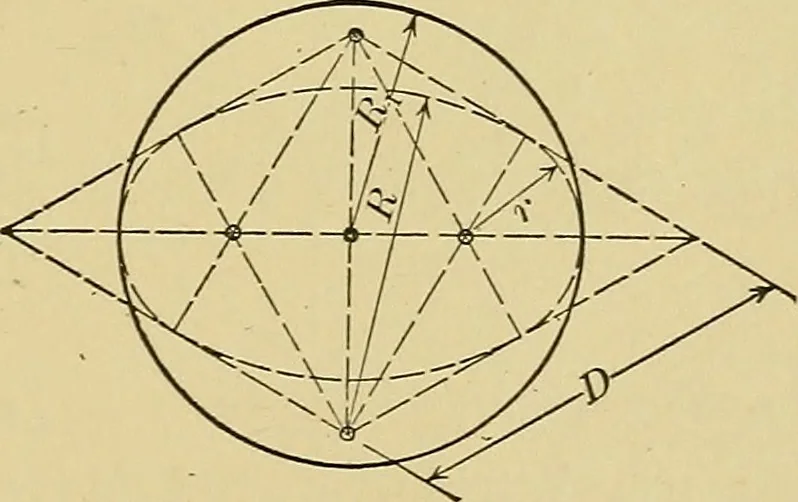

(a) (b)Fig. 133. — Drawing of a Sphere. isometric drawing of a circle having a diameter D. The radius,R, of the circle which represents the isometric drawing of thesphere is one-half the length of the major axis of the ellipse. To draw a half-sphere construct the outline of the sphere asdescribed…
