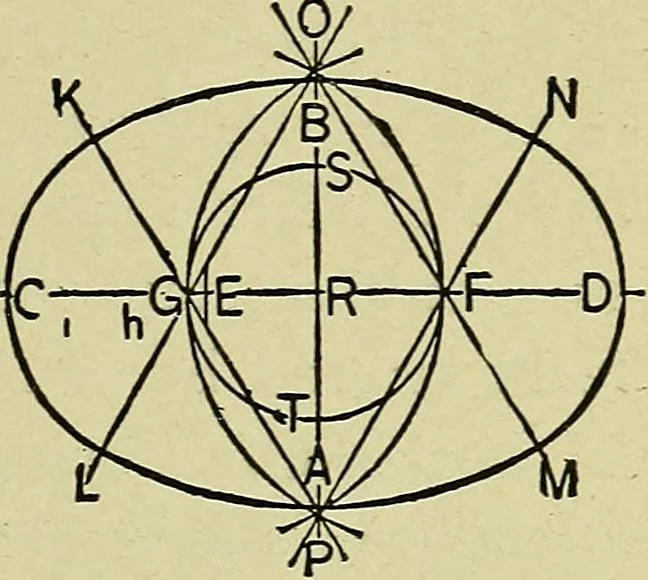

and then proceedwith the work. Withthis instrument an el-lipse may easily be de-scribed. A figure that approximates an ellipse may bedescribed by the compasses, and it is well forthe draftsman to acquaint himself with them.anner in which this is done, and to this end Isubmit perhaps the most useful… … Fig. 70. ?«W ARCHITECTURAL DRAWING SELF TAUQITr PLATE 5. This elevation shows the front and side eleva-tion of the cottage in finished order. Two stylesof drawing are shown, the one being in plain lineand the other shaded. I would not advise thestudent to attempt shading until such time as hefeels…
