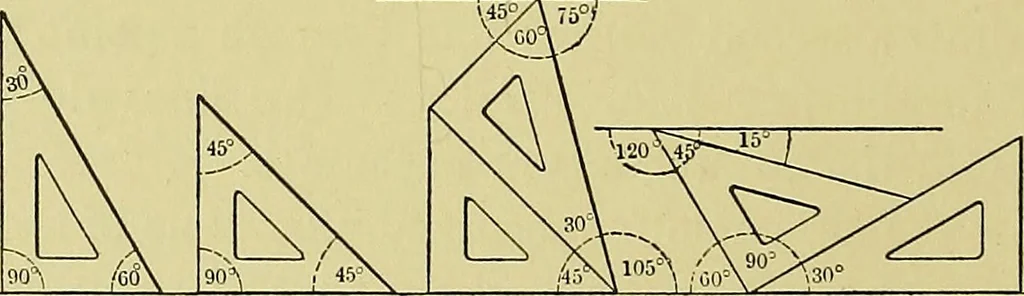

Fig. 6. — Using the Triangle in Connection withthe T-square. … Fig. 7. — Exact Angles that can be drawn, using Triangles and T-Square. Fig. 7 shows the angles that can be accurately drawn by using the 60° and 45° triangles and T-square. DRAWING INSTRUMENTS AND MATERIALS 13 A triangle should not be used alone in drawing lines parallel orat a given angle with…
