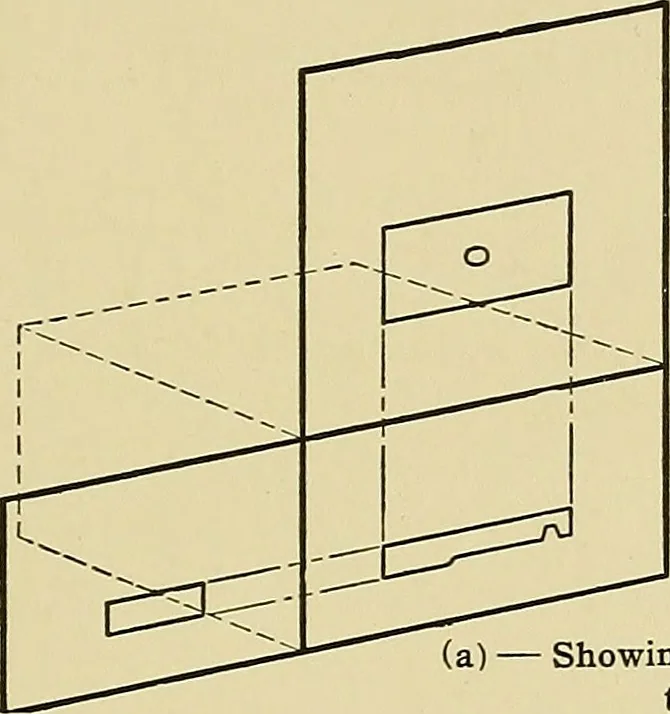

e planes these planes are unfolded so as to be brought toa single plane or flat surface, as shown in Fig. 51. This opera-tion brings the top-view above the front-view, and the right-side-view to the right of the front-view. By connecting projec-tions of corresponding points of the different views… … (a) — Showing Plan and Front Views Folded intothe Plane of the Side View.
Mechanical drawing
