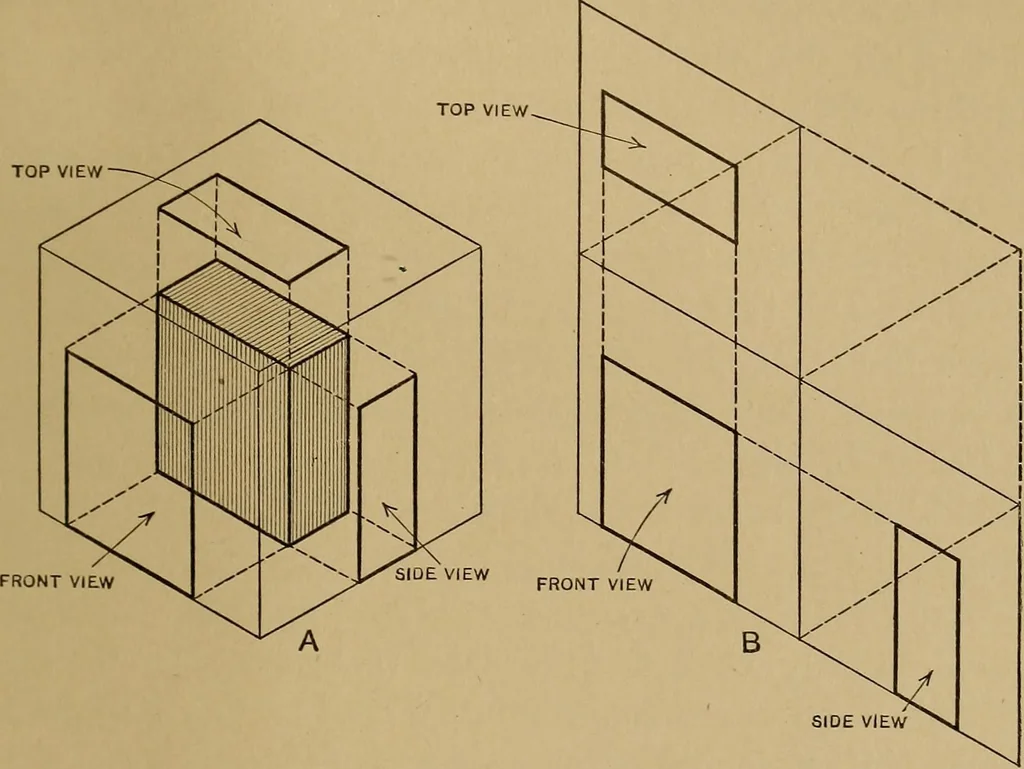

pective drawing and this could be used by a machinist aswell as a properly dimensioned drawing made according tothe orthographic projection method, but when a part is ofirregular shape, and especially if several pieces are combinedto form some kind of a mechanism, the separate views repre-senting… … Machinery Fig. 2. Diagram illustrating Principle of Orthographic Projection Principle of Orthographic Projection Method. — As it is essential for the mechanical draftsman to understandthoroughly the principle of orthographic projection, thismethod of drawing will be further explained. To begin…
