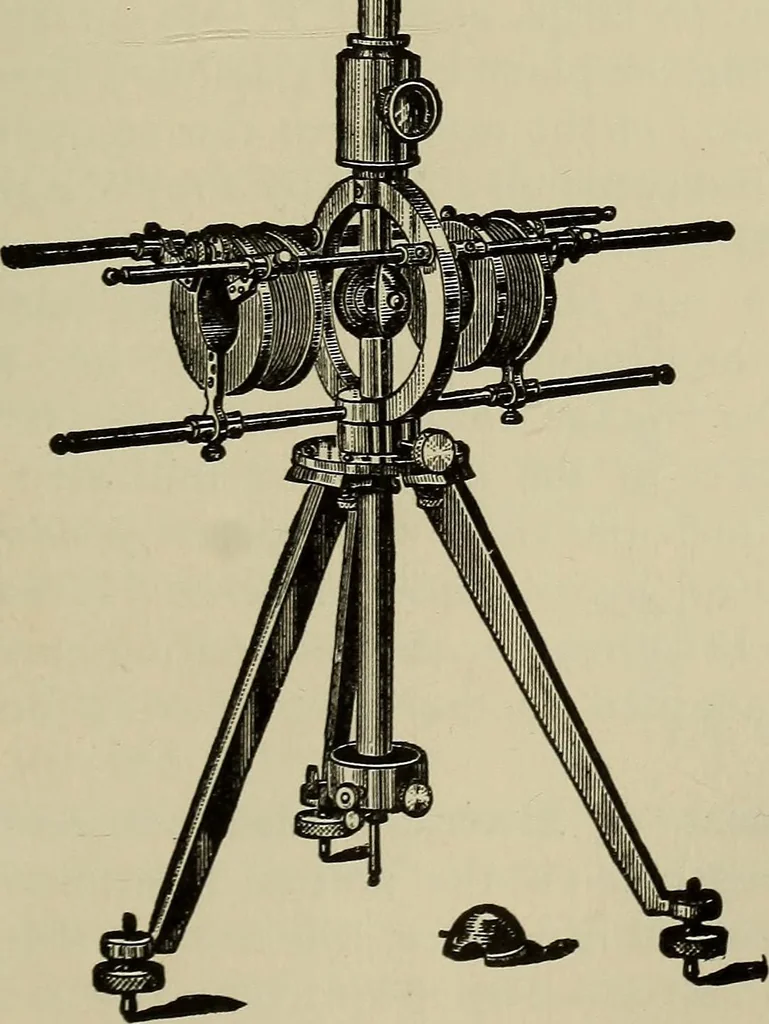

s passing through movable disks for this purpose. The current from the generator enters by one of itscircuit terminals, attached to a binding-screw at thebottom of the lower section of the tube, passes upthrough the inclosed wire and traverses the small coil,goes thence through the upper section of… … Fig. 61. 154 DYNAMIC ELECTRICITY AND MAGNETISM. another rod to the other large coil, and traversing it,passes out by a binding-screw to the generator throughthe other terminal of the external circuit. Proper insulation and connections are provided be-tween the rods, coils, and supporting ring to…
