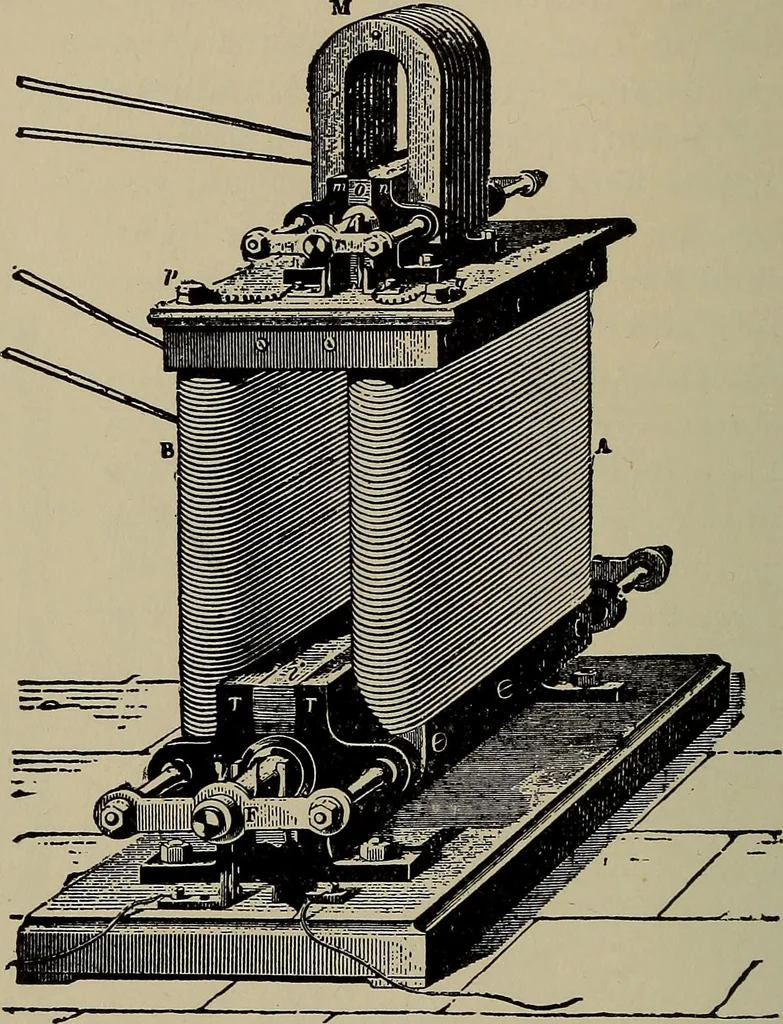

s proportionally increased. Wildes Machine.—Wildes improvement consisted insubstituting a pair of electromagnets for the steel mag-net to produce the magnetic field, and exciting them by Fig. 68. l68 DYNAMIC ELECTRICITY AND MAGNETISM. a small Siemens machine, mounted above it as shown inFig. 69 ;… … Fig. 69. passed out through the external circuit, being madedirect by commutation in both machines. The pole-pieces referred to are indicated in the cut hy m n aboveand T T below, and insulated from each other by brassindicated by o and i. The Dynamo.—Iron when magnetized always retainsa little…
