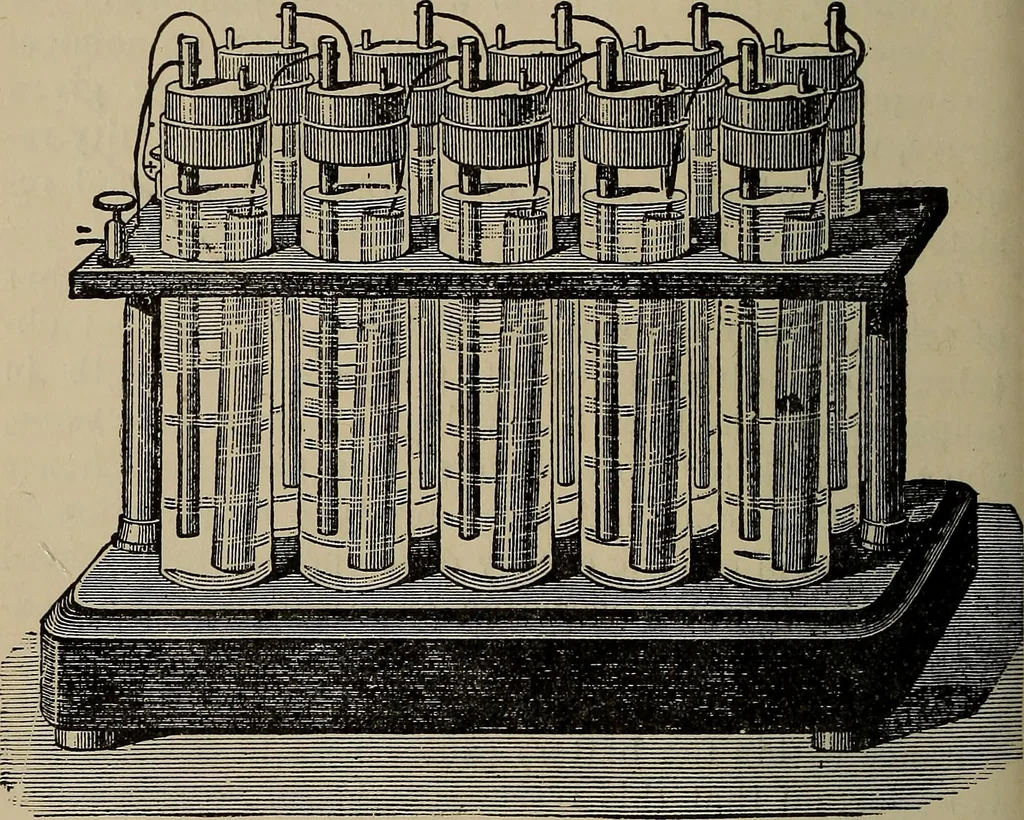

34 DYNAMIC ELECrRICITY AND MAGNETISM. ment of all the parts; the zinc, Z, being bent so asto inclose the porous cup, F, while its upper end isclamped in immediate contact with the platinum, P. Fig. i6 shows the silver chloride battery, in which theceUs are round but small, permitting them to be… … FiG. 16. close together that the top of the silver electrode canbe bent over, and inserted into a hole in the top of thezinc. Where such methods as the above are not practicable,connection can be made by heavy copper wire or strip,in which the resistance is insignificant. But it is of theutmost…
