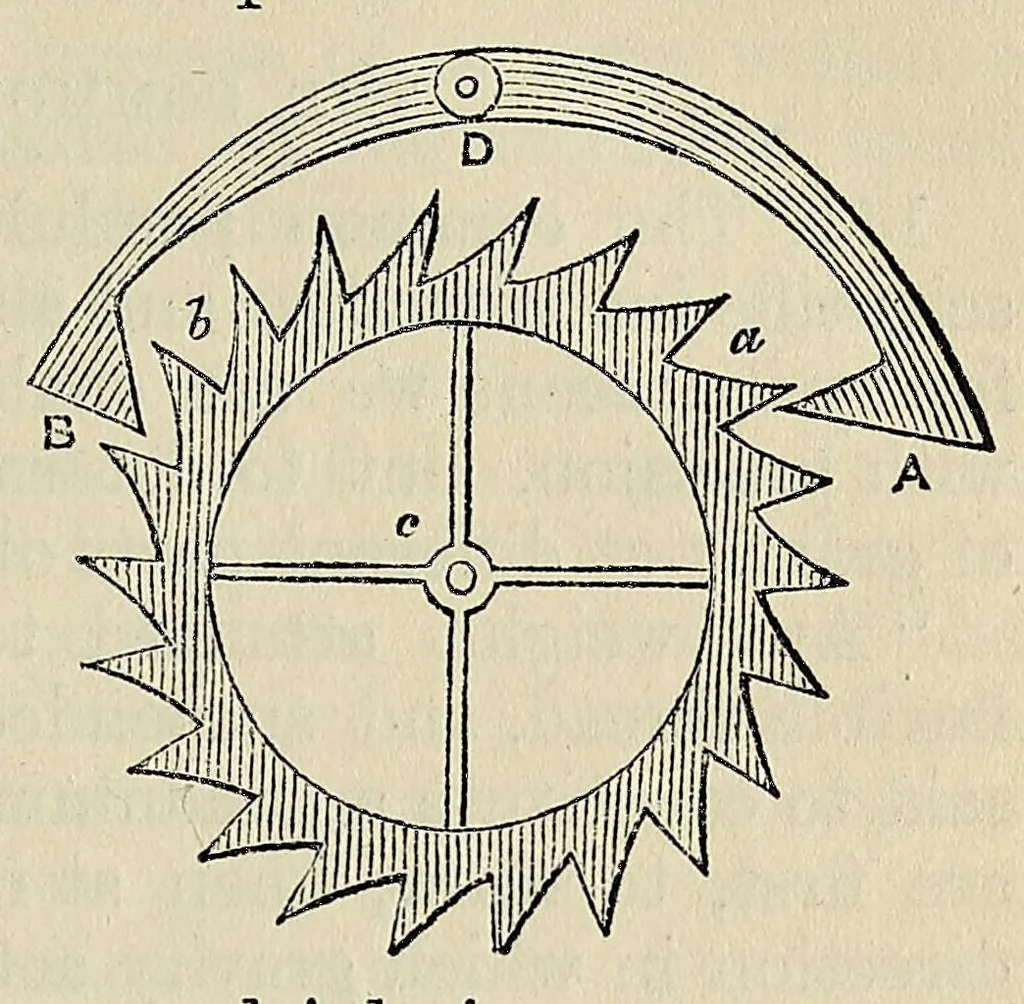

81 ANCHOR AND LEVER ESCAPEMENTS. ANCHOR ESCAPEMENT. 138. This escapement is very commonly used when the axes of the wheel and verge are parallel. Here c is the centre of the wheel, d that of the escapement abb. In the … recoil , which may be observed very plainly in any common house clock with a seconds hand. The sloped faces of the pallets cause the teeth of the wheel to give them impulses in escaping, so as to maintain the motion of the pendulum . This kind of escapement is much the most common, and will…
