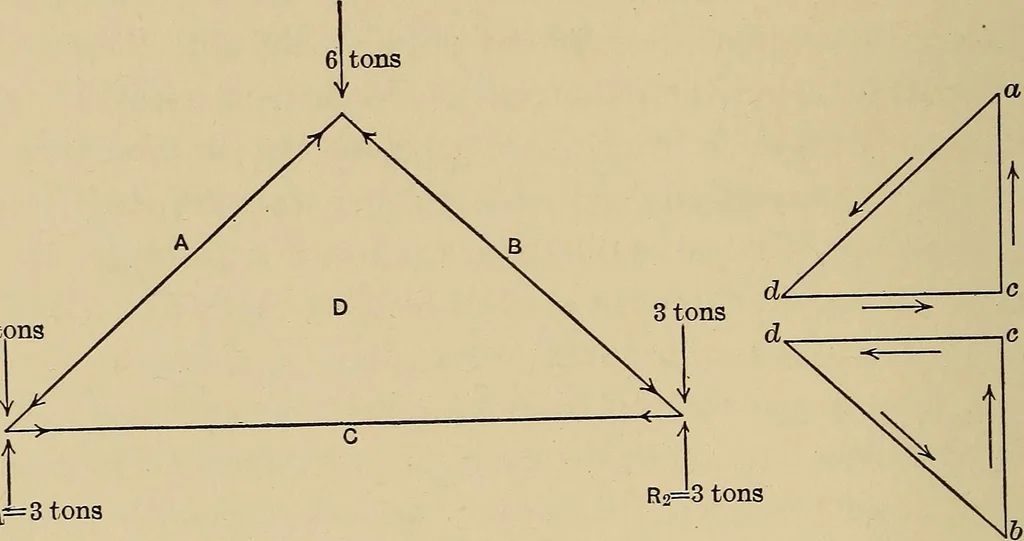

MATERIALS 3. Proceed by similar processes until the reciprocals of allthe joints are drawn and the stresses in all the membersdetermined. It should be noted that the reciprocal of a joint cannot bedrawn if the stresses in more than two of the members formingit are unknown. In general terms, the… … 3 tons Rip=3 tons Fig. 96. Example I. — Suppose each rafter of the roof truss of Fig. 96to support an evenly distributed load of 6 tons; it is requiredto find the magnitudes and kinds of stresses in the members ofthe truss. We commence by apportioning the loads to the joints of theframe diagram. In…
