Cyclopedia of architecture, carpentry, and building : a general reference work ... (1907)
American School of Correspondence · Chicago : American Technical Society · leaf 202

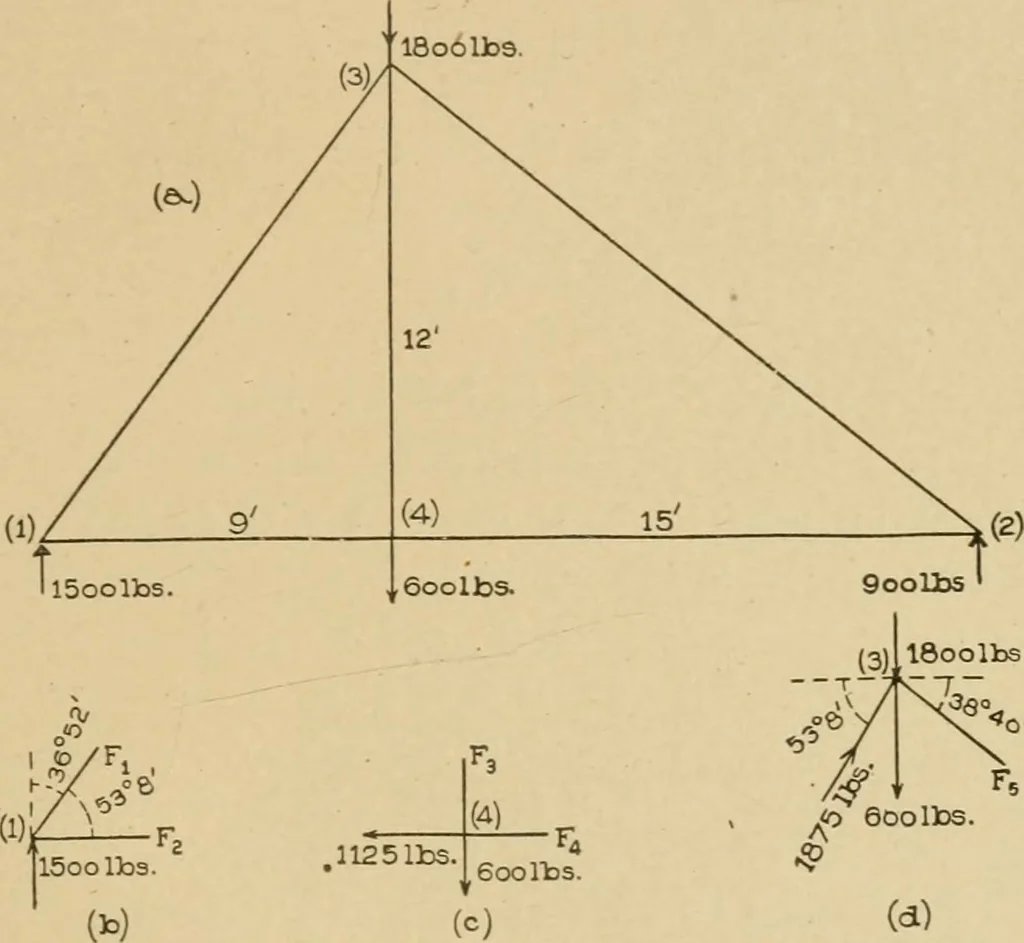

64 STATICS 81 force exerted on the joint by member 84; since the force actsaway from the joint it is a pull and the member is in tension.DA (0.87 inches =: 5,220 pounds) represents the force exertedupon tho joint by the member 8(); since the force acts away fromthe joint, it is a pull and the… … <o eooltos. ^6oolbs.(c)Fig. 20.stress in the corresponding one on the left-hand side; hence furtheranalysis is unnecessary. 2. It is required to analyze the truss represented in Fig.20(«), the truss being supported at the ends and sustaining twoloads, 1,800 and GOO pounds, as shown. (For…
Architecture · Building · Carpentry
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
