The elements of the mechanics of materials and of power transmission (1911)
King, William Richard, 1852- · New York, J. Wiley & sons; [etc., etc.] · leaf 18

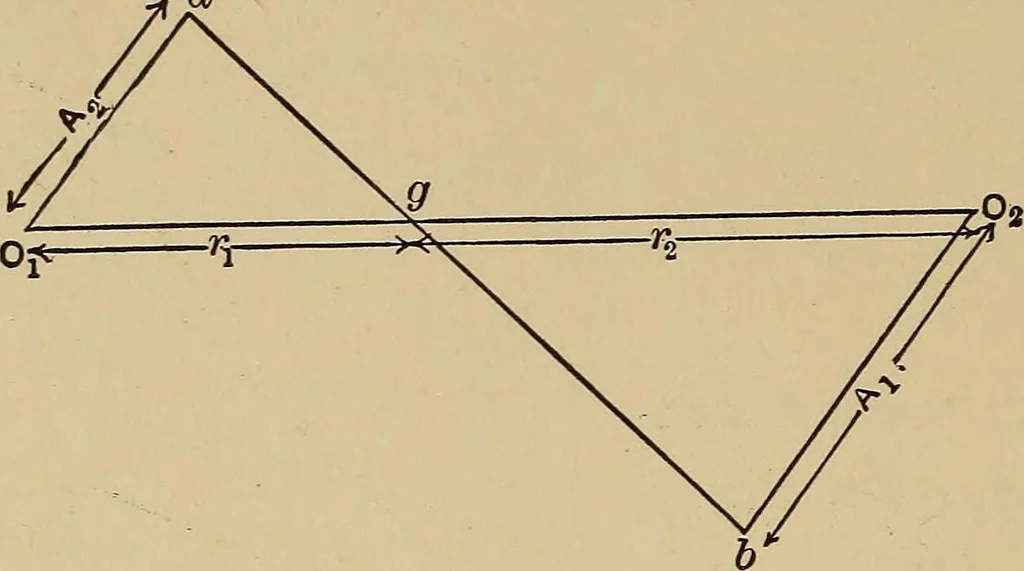

From g2 lay off to scale, in any direction, g2S equal to A\, andparallel to it, and on the same side of gig2, lay off gir. Join 8 THE ELEMENTS OF MECHANICS OF MATERIALS sr and extend it to meet gig2 produced at G. Then the point G is the required center of gravity. The truth of these graphic… … - ^ Fig. 8. center of gravity be situated at g, distant ri from Oi and ^2from O2. By the principle of moments we shall have Airi =^2^2. In any direction from O2 lay off O^b, whose length repre-sents the area Ai to some selected scale, and from Oi lay ojffOld parallel to O2& and of such length…
Mechanics, Applied · Power transmission
