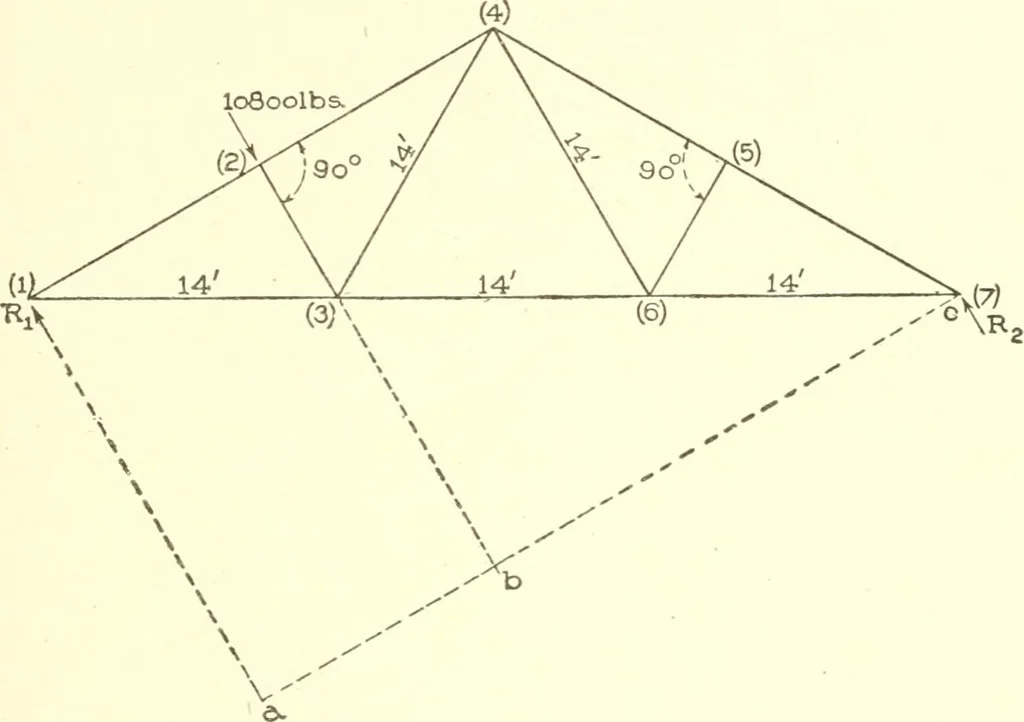

ctions to see if the siun equals that ofthe loads as should be the case. (It will be noticed that reactionson trusses and beams under vertical loads are determined in thesame manner.) 2. It is required to determine the reactions on the truss rep-resented in Fig. 28 due to the wind pressures shown… … Fig. 34. parallel to this resultant; let Kj and Itg denote the left and rightreactions respectively. The line aho is drawn through the point 7 and perpendicularto the direction of the wind pressure; hence with respect to theright support the arms of R^ and resultant wind pressure are acand 5c, and…
