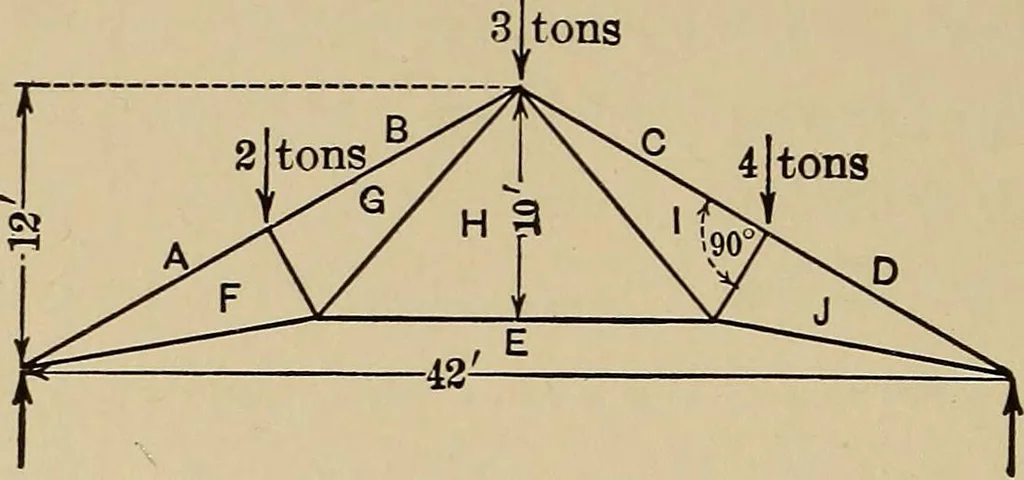

2. Draw the reciprocal diagram of the roof truss of Fig. d, which isloaded as shown. Tabulate the stresses and indicate their kinds in theframe diagram. Scales: Load, 0.25 inch = i ton; linear, 0.1 inch = ifoot. i8o THE ELEMENTS OF MECHANICS OF MATERIALS 3 tons 4 tons … Fig. d. 3. The Fink truss of Fig. e has a span of 56 feet, a depth of 12 feet,and is uniformly loaded with 1.5 tons per foot. Draw the reciprocal dia-gram to the scale of i^ inch = i ton. Tabulate the stresses and indicatetheir kinds in the frame diagram. Scale: Linear, ^ inch = i foot. A B CD…
