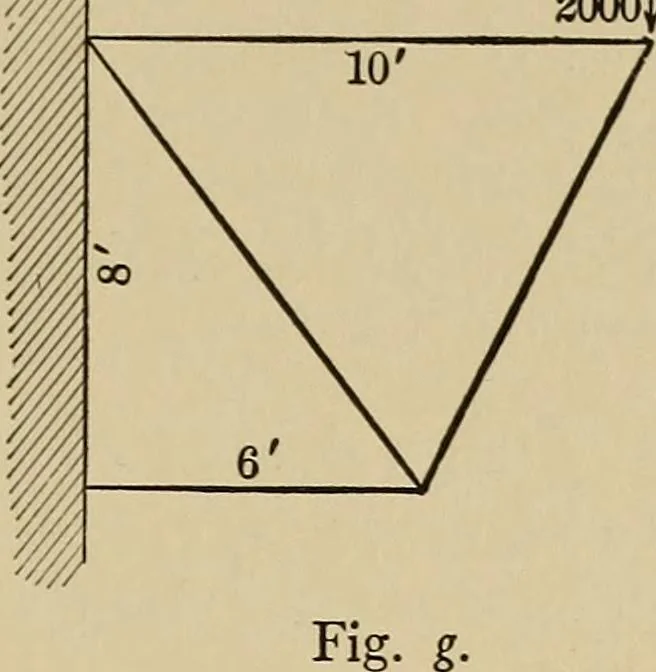

Fig. /. 5. Draw the reciprocal diagram of the braced cantilever of Fig. g, andtabulate the stresses. Find, in magnitude and direction, the resultantstress on the pin of the upper joint at the wall. Scales: Load, o.i inch= 80 pounds; linear, 0.25 inch = i foot. FRAMED STRUCTURES — RECIPROCAL DIAGRAM… … 6. A roof truss, Fig. h, of 50 feet span, fixed at the ends and of 30°pitch, carries vertical loads of 1.5 tons at AB, BC, CD, DE and EF, andsustains a horizontal wind pressure of 33.5 pounds per square foot. Dis-tance between principals, 12 feet. Draw the reciprocal diagram andtabulate the…
